Anterior cerebral artery vascular model PLSJXG001A

intracranial arteryposterior cerebral arterybrain artery

Product overview

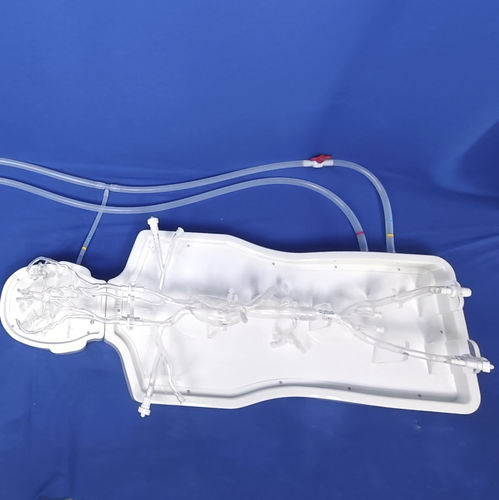

This intracranial vascular intervention training model is manufactured from high-transparency soft silicone and is designed for surgical training, instrument performance testing and functional demonstration in neurointerventional procedures. The model reproduces cerebral arteries and major access vessels to provide realistic simulation of endovascular workflows.

Key features

• Anatomy included: anterior/posterior cerebral arteries, middle cerebral arteries, basilar artery and circle of Willis, with selectable aneurysm and stenosis segments; left/right vertebral arteries, left/right common carotid arteries, thoracic aorta, iliac and femoral arteries.
• Replaceable modules: interchangeable aneurysm and stenosis modules; replaceable middle cerebral artery and vertebral artery segments.
• Material: high-transparency soft silicone, hardness 30A.
• Dimensions: model length 108 cm × width 48 cm × height 34 cm.

Compatible instruments

• Intracranial guidewires, microcatheters, stents, detachable coils, thrombectomy devices, embolic filters and other neurointerventional tools.

Intended use

• Training in diagnosis and endovascular treatment of intracranial artery stenosis and aneurysm; functional and performance testing of related surgical instruments; procedural rehearsal and device validation.

Specifications

• Commercial model: Intracranial vascular intervention training model - Type A
• Internal model: PLSJXG001A
• Material hardness: 30A
• Lead time: 15 days
• Origin: Shanghai, China
• 3D design files and schematic images available for reference.
