Brain vascular model PLXG2001

cerebralvertebral arterybasilar artery

Overview

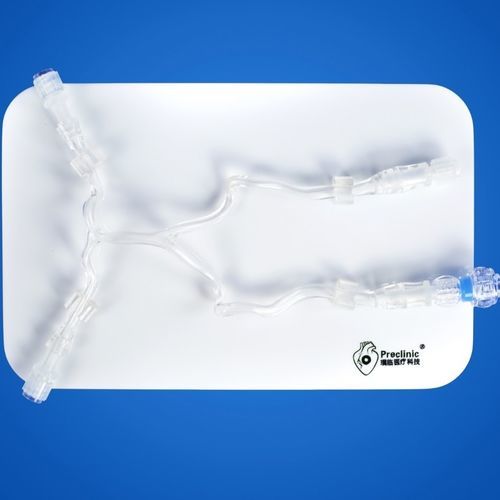

This posterior cerebral circulation vessel model reproduces the vertebral artery, basilar artery and posterior cerebral artery in a clinically realistic geometry. Manufactured from highly transparent, food‑grade soft silicone, it is designed for neurovascular procedure training, device passability and pushability testing, and R&D verification.

Features

• Accurate anatomical reproduction of the morphology and spatial relationships of the vertebral, basilar and posterior cerebral arteries to replicate the posterior circulation vascular pathway for realistic training and device evaluation.
• Clear functional positioning enabling objective testing and visual demonstration of passability, pushability and controllability of neurovascular intervention devices within the posterior circulation, supporting clinical simulation and R&D verification.
• Model body made of highly transparent food‑grade soft silicone (material transparency ≥ 90%; hardness approx. 30A) combining soft tactile feedback with high optical clarity to observe dynamic device movement and navigation inside vessels.

Applications and device testing
The model supports neurovascular intervention scenarios including angiography, thrombectomy and microcatheter interventions. Device testing and evaluation cover guide wires, catheters, vascular stents, coils and thrombectomy stents to meet clinical training and product development needs.

Material and safety
The model body is made of food‑grade soft silicone, non‑toxic and odorless. Material transparency ≥ 90% and hardness approx. 30A. Official testing certificates can be provided to demonstrate compliance for medical simulation products.

Portability and accessories
Lightweight (net weight 0.4 kg; packaged weight approx. 1 kg) and supplied with a dedicated canvas carrying bag for easy transport and on‑site teaching. Standard accessories: 1 Y valve, 1 × 50 ml lubricant, 1 syringe.

Drawing
Main dimensions and a dimensional drawing are provided for reference as product images.

Specifications

• PN: PLXG2002
• Main material: Highly transparent food‑grade soft silicone
• Hardness: ~30A
• Material transparency: ≥ 90%
• Net weight (NW): 0.4 kg
• Total weight (with packaging): ~1 kg
• Model size: 27 × 14 × 2.5 cm
• Lead time: 15 days
• Origin: Shanghai, China
• Standard accessories: 1 Y valve; 1 × 50 ml lubricant; 1 syringe

FAQ (selected)

• What trainings and device tests does this model support? It supports neurovascular scenarios such as angiography, thrombectomy and microcatheter interventions. Tests cover guide wires, microcatheters, vascular stents, coils and thrombectomy stents.
• Is the material safe and sufficiently transparent for observation? The model is made of food‑grade soft silicone, non‑toxic and odorless, with transparency ≥ 90% for clear visualization of device movement and positioning.
• How portable is the product and what accessories are provided? The model is lightweight (NW 0.4 kg; packaged ~1 kg) and comes with a canvas carrying bag. Standard accessories: 1 Y valve; 50 ml lubricant; 1 syringe.
