External carotid artery vascular model PLXG2003

carotid arterytrainingfor EVT

Product overview

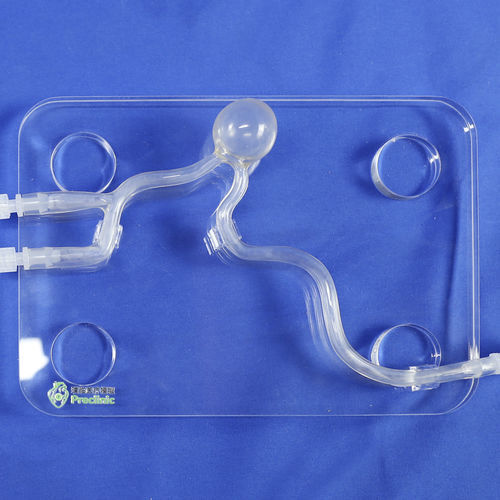

The PLXG2003 arterial aneurysm training model reproduces carotid artery anatomy and aneurysm geometry for hands‑on testing, evaluation and surgical training of endovascular devices. Designed for realistic instrument access and clear intraluminal visualization, it supports procedural simulation (angiography, embolization) and performance testing of catheters, guide wires and coils.

Features

• Anatomical fidelity: reconstructs carotid artery (Ø 3.9 mm–6 mm), external carotid artery (Ø 5.5 mm) and aneurysm (S Ø 24 mm) with branch layout matching human physiology to simulate clinical scenarios.
• High-visibility material: food-grade soft silicone with material transparency ≥ 90% to allow clear observation of device movement and positioning inside vessels and the aneurysm.
• Clinical access simulation: dedicated guide wire/catheter insertion port on the carotid to reproduce clinical access paths and support full-process training and precise device testing with realistic handling logic.

FAQ (selected)

• What training and device testing does this model support? Supports neurovascular intervention scenarios including neurovascular angiography, thrombectomy and neuromicrocatheter procedures; device testing covers guide wires, catheters, vascular stents, coils and thrombectomy stents for training and product development.
• Is the material safe and is transparency sufficient? Model body is made of food-grade soft silicone, non-toxic and odorless, with transparency ≥ 90%; material can be certified on request to support official testing and clear intraluminal observation.
• How portable is the product and what accessories are included? Lightweight (net weight 0.4 kg; total with packaging 1 kg) and supplied with a canvas carry bag. Standard accessories: 1 Y valve, 1 × 50 ml lubricant, 1 syringe.

Specifications

• PN: PLXG2003
• Main material: food-grade high-transparency soft silicone; hardness: 30A
• Material transparency: ≥ 90%
• Anatomical sizes: carotid artery Ø 3.9 mm–6 mm; external carotid artery Ø 5.5 mm; aneurysm (S) Ø 24 mm
• Instrument access: dedicated guide wire/catheter insertion port simulating clinical access
• Model dimensions: length 21 cm; width 15 cm; height 3.5 cm
• Net weight: 0.4 kg; total weight with packaging: 1 kg
• Standard accessories: 1 Y valve; 1 × 50 ml lubricant; 1 syringe; canvas bag
• Lead time: 15 days
• Origin: Shanghai, China
