Cerebral vascular model PLSJXG002

femoral veinintracranialinternal jugular vein

Product Overview

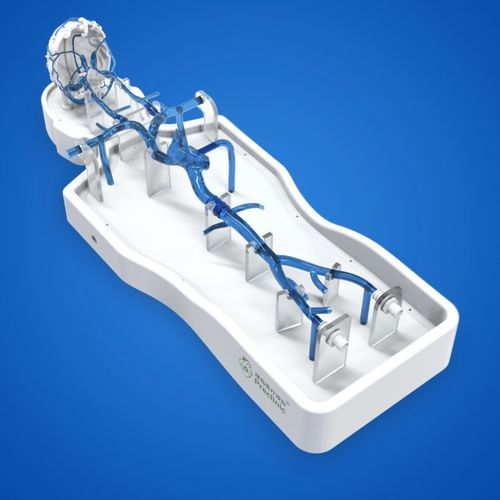

This intracranial–femoral vein training model is manufactured in highly transparent soft silica gel for neurovascular intervention training, device performance testing and surgical instrument demonstration. It reproduces realistic venous anatomy to simulate guidewire and catheter maneuvers, filter stent placement, coil deployment and stent/thrombectomy device testing. The model can be connected to a circulating fluid for imaging validation (contrast angiography, CT, DSA).

Features

• Accurate anatomical reproduction of intracranial and central venous structures (cerebral veins, venous sinuses, jugular veins, superior vena cava, right atrium, inferior vena cava and femoral vein) in a highly transparent, soft silicone-like material for clear observation of device behavior.
• Supports the full neurointervention training workflow; compatible with a wide range of interventional devices and imaging modalities when used with circulating fluid.
• Modular vascular components are removable and replaceable; lesion modules (aneurysm, stenosis) can be customized; supports multiple access routes for procedural training.

Specification (table)
PN: PLSJXG002
Main Material: Highly transparent soft silica gel, material hardness: 30A
Product Size: Model length: 108 cm; Model width: 48 cm; Model height: 34 cm
Lead Time: 15 days
Origin: Shanghai, China

Drawings / Illustrations

• Femoral artery model (illustration)
• Femoral vein model (illustration)

FAQ

• Q1: What interventional instruments and imaging techniques can this model be adapted to? Answer: Compatible with neurovascular guidewires, catheters, filter stents, coils, stents and thrombectomy devices; with circulating fluid it supports contrast angiography, CT, DSA and other imaging checks.
• Q2: How to clean and maintain the model after daily use, and what should be noted for long-term storage? Answer: Rinse lumens and tubing with filtered purified water and drain residual liquid; for long-term storage ensure the model and internal tubing are completely dry and store in a cool, dark place; secure in the dedicated transport case during shipment to avoid movement.
• Q3: Does the model support personalized customization? What content can be customized? Answer: Yes. Replaceable lesion modules such as venous aneurysm and venous stenosis can be customized; venous sinus aneurysm models with different specifications, sizes and vascular segment shapes can be provided on request.

Technical characteristics

• Product name: Intracranial–Femoral Vein Training Model
• PN: PLSJXG002
• Main material: Highly transparent soft silica gel
• Material hardness: 30A
• Model dimensions: 108 cm (L) × 48 cm (W) × 34 cm (H)
• Compatible instruments: guidewire, catheter, filter stent, coil, stent, thrombectomy stent
• Supported imaging/techniques: contrast angiography, CT, DSA (with circulating fluid)
• Modularity: removable/replaceable vascular modules; customizable lesion modules
• Cleaning & storage: rinse with filtered purified water and fully drain; store dry in a cool, dark place; secure in transport case to avoid shocks
