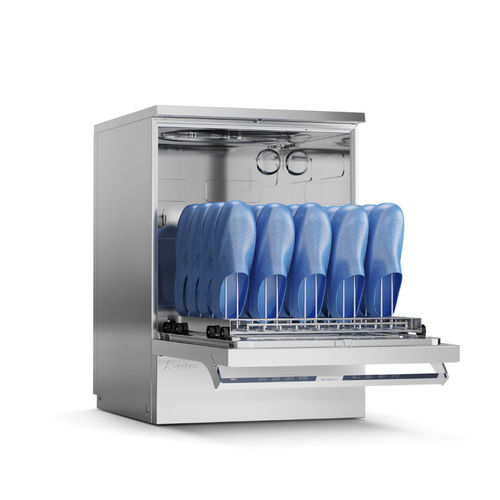

Dental washer-disinfector DS 500 series

floor-standingcompactundercounter

The DS 500 Series of compact under-counter washer-disinfectors is specially designed for installations where space is at a premium. The series represents the ideal aid for washing and thermal disinfection of all types of surgical instruments, with a processing capacity of up to 8 DIN trays. These washers share the washing technology of higher-throughput devices, providing unmatched flexibility, excellent cleaning, and drying efficacy. The models of the series are capable of injection washing and drying on up to two independent levels. The drop-down door provides a convenient loading and unloading platform for lower and dual-injection wash carts. Hygienic Design The washing chamber, spray arms, and tank filters are made of high quality AISI 316 L stainless steel (DIN 1.4404). The washing chamber has rounded edges in order to avoid any dirt traps, minimizing the risk of microbial growth. The water filtering system on three levels captures residue preventing re-circulation and extending the pump life. Stands and Side Cabinets Different models of stands and cabinets are suitable for: Boiler for DI water preheating; Purification system for DI water supply; Up to four 5 lt chemical containers. Stands also improve ergonomics when the machine is not installed under the counter. The 600mm / 23.62″ high stands are equipped with doors for easy storage access to chemicals and accessories. Comprehensive Range of Components Our range of DS 500 series of washer-disinfectors is completed with a wide range of baskets, wash carts, inserts, and components designed to meet the different needs of customers.
