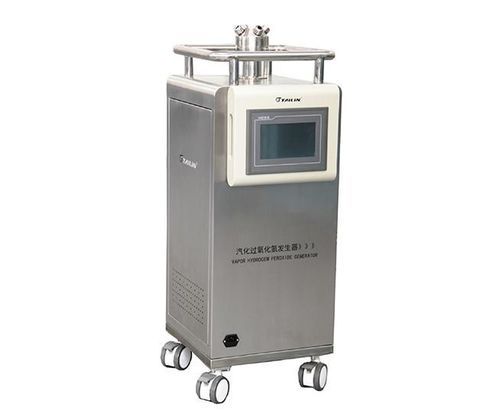

Environmental disinfection system HTY-V150

for laboratoryfor clean roomsfor hospital

Introduction
Vaporized Hydrogen Peroxide Generator HTY-V150 uses high-speed airflow and flash vaporization technology to convert a 35% hydrogen peroxide solution into vaporized H2O2, which is injected into confined spaces via pipeline or nozzle. Vaporized H2O2 generates hydroxyl radicals that inactivate microorganisms by damaging cell membranes and intracellular components such as DNA.

• FeaturesEfficiency: Rapid sterilization cycles to reduce process time and operating cost.
• Safety: Operates at ambient temperature, non-toxic with minimal residue; designed for high material compatibility to simplify validation.
• Broad spectrum: Effective against fungi, bacteria, viruses and spores (≥log6 killing rate).
• Compact design: Ultra-portable, easy to move and operate. Optional real-time H2O2 concentration monitoring available.

Applications
Designed for sterilization and disinfection in controlled environments such as pharmaceutical cleanrooms, biosafety laboratories, animal facilities, medical and analytical laboratories, pharmaceutical and biotech production areas, and public health facilities.
Technical specifications

• Model: HTY-V150
• Airflow: ≥20 m³/h
• Sterilization volume capacity: ≤150 m³
• Injection rate: 1–7 g/min (adjustable; corrosion-resistant solenoid valve)
• Vaporization temperature: ≤100°C
• Sterilant: 35% food-grade H2O2 solution
• Killing rate: ≥log6
• Residue after disinfection: ≤1 ppm
• Noise: ≈75 dB @ 1 m
• Control: Siemens PLC, split control with remote touchscreen operation
• Dimensions: 360×360×970 mm (W×D×H)
• Weight: ~45 kg
• Power supply: 220V ±22V, 50Hz ±1Hz
• Power consumption: 2500 W, 10 A
