Environmental disinfection system VH2O2-MINI

for laboratoryfor hospitalhydrogen peroxyde

Product introduction

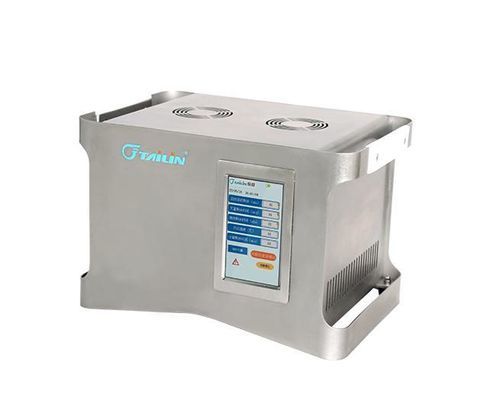

VH2O2-MINI is a portable vaporized hydrogen peroxide generator designed for high-level disinfection of small confined spaces such as biological safety cabinets, glove boxes and CO2 incubators used in laboratories and medical facilities.

Overview

• Vaporizes 30%–35% hydrogen peroxide solution into reactive vapor species.
• Ultra-compact footprint smaller than A4 paper; compatible with 150 L CO2 incubators for in-situ disinfection.
• Recommended disinfection volume: 1–10 m³.

Features

• Portable, lightweight design suitable for confined-space decontamination and routine laboratory workflows.
• Flash-vaporization module achieves rapid conversion of solution to reactive species (including free hydroxyl radicals) for efficient microbial inactivation; capable of up to 6‑log reduction of target organisms.
• Integrated high-performance platinum catalytic module reduces residual hydrogen peroxide concentration to safe levels (<1 ppm) after the cycle; catalyst described as maintenance-free.

Applications

• Biopharma and biotechnology production environments requiring localized high-level disinfection.
• Medical research and diagnostic laboratories (biosafety cabinets, glove boxes, incubators).
• Pharmaceutical QC/production, public health and other facilities needing rapid decontamination of small enclosed spaces.

Technical specifications

• Recommended disinfection space: 1–10 m³
• Disinfection method: VH2O2 flash evaporation
• Vaporization rate: Max. flash rate 1 g/min
• Sterilant: 30–35% hydrogen peroxide solution
• Dimensions (L × W × H): 280 × 190 × 190 mm
• Weight: 6 kg
• Power supply: 220 V / 50 Hz; 200 W
