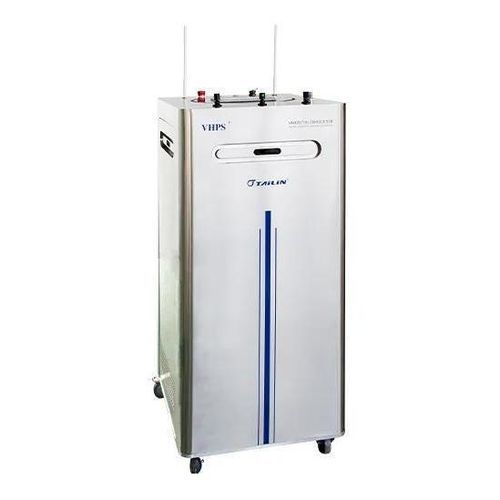

Environmental disinfection system HTY-V600

for laboratoryfor clean roomshydrogen peroxyde

Product Introduction
Vaporized Hydrogen Peroxide Generator HTY-V600 adopts high-speed airflow and flash vaporization technology to vaporize 35% hydrogen peroxide solution into hydrogen peroxide steam, and through the pipeline or nozzle hydrogen peroxide into the confined space. Vaporized hydrogen peroxide molecules contain a large number of hydroxyl radicals, which can kill microorganisms by attacking molecules on cell membranes and biologically active components such as DNA inside cells.

Features

• Adopting the latest generation of flash vaporization module, the vaporization efficiency is 2 times higher than the previous generation, and more space can be processed.
• Equipped with a printer for real-time printing of data during operation.
• The control system has 3 levels of authority: operators, supervisors and administrators; only authorized personnel can set parameters and other related operations, complying with GMP requirements.
• With four air outlets, fan-assisted diffusion, and 360° coverage of Vaporized Hydrogen Peroxide gas, the peroxide gas is uniformly distributed.
• Material compatibility testing and on-site IQ, OQ and sterilization process development are available in advance.

Applications
Primarily used for sterilization and disinfection in public spaces, such as pharmaceutical cleanrooms, bio-laboratories, animal laboratories, and animal facilities.

• Pharmaceutical and Biotech Production
• Medical and Laboratory Facilities
• Public Health Industry

Caractéristiques / Spécifications techniques

• Airflow: <200 m³/h
• Sterilization Volume: ≤600 m³
• Compressed Air: Pressure: 0.3 MPa (flow rate: not specified)
• High-Efficiency Filtration Efficiency: 99.99%
• Solution Tank Capacity: 5000 mL
• Output Direction: 360° all-directional spraying
• Injection Rate: Adjustable flow rate 5–40 g/min
• Vaporization Temperature: ≤160°C
• Data Reports: Log records and operational data with time stamps
• Monitoring Parameters: Time
• Sterilant: 35% food-grade H2O2 solution
• Killing Rate: ≥log6
• Distribution Uniformity: After sterilization, the CIs exposed at all points in the space exhibit uniform color changes
• Control Method: Equipped with a split control system; main unit separated from the operation panel. Siemens PLC enables modular control; touch screen allows remote operation outside the disinfection area
• Operation Mode: Built-in scattering system
• Target Objects: Designed for high-level disinfection/chemical sterilization of air and surfaces in large cleanrooms and other enclosed spaces
• Post-Sterilization Treatment Method: Gaseous hydrogen peroxide is decomposed through the air conditioning and ventilation system until residual concentration meets national standards (below 1 ppm)
• Noise: ≤75 dB (measured at 1 meter from the device at ear height)
• Safety: 1) Control system can resist interference from handheld radio devices and mobile phone signals within a 1-meter range of the device; 2) In the event of a utility failure (e.g., power outage), all circuits and components of the device will stop functioning
• Dimensions (mm): 650 × 560 × 1250 (L × W × H)
• Weight: 90 kg
• Power Supply: 220V ±22V, 50Hz ±1Hz
• Power: 4000 W, 25 A
