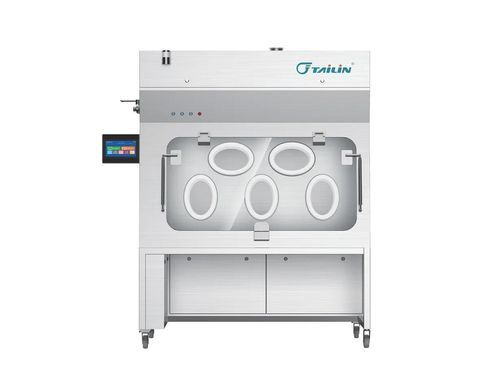

Aseptic isolator LH1-1S series

for animal researchsterilefor research

Introduction
Germ-free mouse isolators designed for sterile handling, surgical procedures and gnotobiotic rearing of mice and rats. The systems integrate intelligent control, automated management programs and multiple expansion ports to support sterile workflows, secure transfers and environmental monitoring required for laboratory and biomedical research.

Features

• Sterile transfer trolley and docking port to prevent contamination during animal and material transfer.
• Inlet and exhaust fitted with H14 HEPA filters (99.995% MPPS efficiency per EN1822).
• Ergonomic tilted front panel for improved operator access.
• Front viewing window with integrated gloves and active inflatable seal to maintain a stable sterile environment.
• Chamber is a rigid welded stainless-steel structure with smooth surfaces and rounded corners to eliminate cleaning dead zones; leakage rate less than 0.5% Vol/hr at 2× working pressure.
• Reserved VH2O2 interfaces for external vaporized hydrogen peroxide generators or optional integrated VH2O2 decontamination system.
• Environmental monitoring for differential pressure, temperature, humidity and ammonia concentration.
• Built-in lighting for routine tasks and inspection.

Models

• LH1-1S-G5 — Function: Germ-free rearing; single-sided operation with 5 integrated sleeves per operating face.
• LH1-1S-G2 — Function: Surgical experiments; single-sided operation with 2 integrated sleeves per operating face.

Specifications (table)
Model: LH1-1S-G5 — Model: LH1-1S-G2
Function: Germ-free rearing — Function: Surgical experiments
Overall dimensions: L1700 × W980 × H2100 mm — Overall dimensions: L1300 × W820 × H2050 mm
Chamber dimensions: L1700 × W910 × H920 mm — Chamber dimensions: L1200 × W740 × H770 mm
Operation method: Single-sided operation, 5 integrated sleeves per operating face — Operation method: Single-sided operation, 2 integrated sleeves per operating face
Transfer channel: Sterile transfer port, docks with sterile transfer trolley — Transfer channel: Sterile transfer port, docks with sterile transfer trolley
Sealed door: Tempered glass viewing window, active inflatable sealing — Sealed door: Tempered glass viewing window, active inflatable sealing
Pressure control: Adjustable from -150 to +150 Pa; interior-exterior differential ≥ 50 Pa — Pressure control: Adjustable from -150 to +150 Pa; interior-exterior differential ≥ 50 Pa
Airflow control: Air changes ≥ 20 times/h — Airflow control: Air changes ≥ 20 times/h
Caging: Built-in cage rack — Caging: /

Applications
Suitable for sterile operations, surgical procedures, germ-free/gnotobiotic rearing and sterile transfers in research animal facilities, biomedical labs and institutions that require strict sterility control and monitoring of pressure, temperature, humidity and ammonia.

Technical specifications

• H14 HEPA filtration on inlet and exhaust (99.995% MPPS efficiency per EN1822).
• Pressure control range: -150 Pa to +150 Pa; minimum interior-exterior differential ≥ 50 Pa.
• Air changes: ≥ 20 air changes per hour.
• Leakage rate: less than 0.5% Vol/hr at 2× working pressure.
• Tempered glass viewing door with active inflatable sealing; front viewing window with integrated gloves for manipulations.
• Welded stainless-steel chamber with smooth surfaces and rounded corners to eliminate cleaning dead zones.
• Reserved/optional VH2O2 interface for vaporized hydrogen peroxide decontamination (external or integrated options).
• Environmental monitoring: differential pressure, temperature, humidity, ammonia concentration.
• Built-in lighting and ergonomic tilted front design for operator convenience.
• Model variants: LH1-1S-G5 (rearing) with 5 integrated sleeves per face; LH1-1S-G2 (surgical) with 2 integrated sleeves per face.
