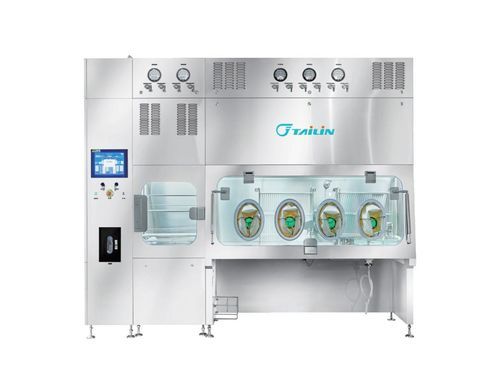

Containment isolator

for clinical analysissterilefor research

Introduction
The biosafety isolator provides containment for infectious materials and a sterile environment for sensitive workflows. It protects personnel, products and the surrounding environment by controlling aerosol dispersion and maintaining defined internal conditions. The unit is designed for integration with laboratory instruments (nucleic acid extractors, PCR thermal cyclers, centrifuges) and for work with recombinant DNA and pathogenic or unknown microorganisms.

Features

• Triple protection concept: concurrent protection of personnel, product and environment.
• Modular design: transfer chamber, operation chamber and configurable functional modules to suit workflow requirements.
• Isolated internal operations independent of external airflow conditions.
• Turbulent airflow mode to manage aerosol behavior within the work area.
• Adjustable internal pressure: configurable from -150 Pa to 150 Pa for negative or positive pressure operation.
• Dry VH2O2 sterilization with full-process dehumidification to prevent condensation.
• Dynamic VH2O2 concentration control with real-time feedback to avoid under- or overexposure and prevent condensation.
• Validated bio-decontamination: achieves a log6 reduction with the specified VH2O2 process.
• Integration-ready layout to accommodate diagnostic and research instruments while maintaining containment.
• Designed for compliance with relevant regional standards and regulations (China, EU, USA).

Applications

• Handling infectious materials, including high-risk or unknown pathogens.
• Recombinant DNA procedures and work with organisms containing recombinant DNA.
• Virus cultivation and viral nucleic acid extraction workflows.
• Testing and manipulation of highly pathogenic microorganisms.
• High‑risk laboratory animal operations requiring containment and aseptic conditions.
• Integration of laboratory instruments within a contained sterile environment for diagnostic and research workflows.

Technical specifications

• Power supply: AC 220V, 50Hz
• Maximum power: 3.0 kW
• Barrier system: outer shell/frame 304 stainless steel; internal cavity and work surfaces 316L stainless steel; transparent operation panels tempered glass
• Control system: touchscreen with PLC control
• Airflow mode: turbulent flow
• Pressure range: internal chamber pressure adjustable from -150 Pa to 150 Pa
• Noise level: ≤ 75 dB(A)
• Bio‑decontamination: validated log6 kill rate (6‑log reduction) with specified VH2O2 cycle
• Disinfectant: 35% food‑grade hydrogen peroxide solution for VH2O2 sterilization
