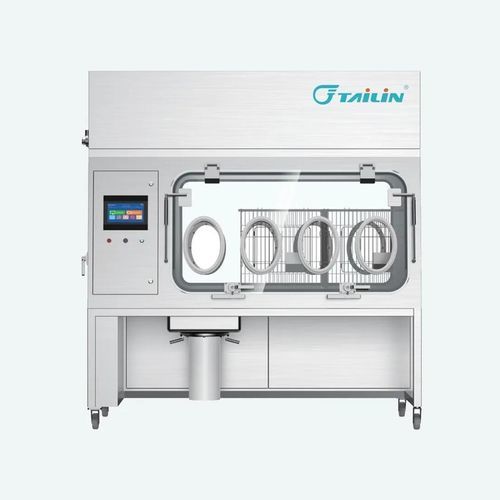

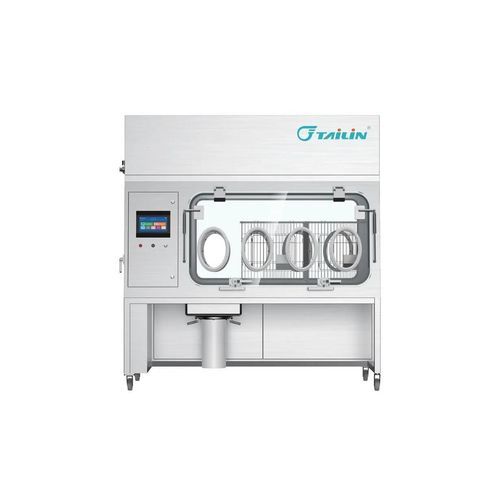

Animal research isolator LH7-1D series

for researchfor veterinary diagnosisfor biocontainment

Introduction
Applied in Biosafety Level 3 and above laboratories for rearing, experimental procedures and related operations on laboratory ferrets. Designed to meet biosafety and animal experimentation requirements.

Models

• LH7-1D-G6-BS
• LH7-1D-G8-BS

Features

• Single- or double-chamber configurations with multiple housing densities; independent control per chamber to avoid mutual interference.
• Parallel redundant exhaust units with automatic pressure-loss monitoring to maintain negative pressure; online fan replacement capability.
• Multi-stage exhaust filtration (mesh, primary, high-efficiency) with terminal H14 HEPA filters (99.995% MPPS per EN1822); automatic leak scanning, efficiency testing, in-situ disinfection and Bag-In-Bag-Out replacement.
• Front access with tempered glass viewing window, integrated glove sleeves and multi-point mechanical compression sealing.
• Ergonomic inclined front face for operator access.
• Rounded-corner rigid chamber construction with no burrs or cleaning dead zones; chamber leakage < 0.25% Vol/hr at -250 Pa.
• Each chamber includes an independent transfer chamber; optional disinfection methods: UV, pulsed xenon or atomized spray; reserved VH2O2 interface for external VHP or optional built-in VH2O2 system.
• Modular design allowing integrated or separate placement of chamber and control cabinet for space-constrained environments.
• Real-time monitoring of differential pressure, temperature, humidity and ammonia concentration.
• Built-in lighting and internal ferret cage racks for animal handling.

Compliance

• GB14925-2023 Laboratory Animal - Requirements for Environment and Housing Facilities
• GB50346-2011 Architectural and Technical Code for Biosafety Laboratories
• GB50447-2008 Architectural and Technical Code for Laboratory Animal Facilities
• RBT010-2019 General Requirements for the Evaluation of Barrier and Isolation Devices for Laboratory Animals
• RBT019-2019 Guidelines for Performance and Environmental Parameter Verification Procedures for Laboratory Animal Facilities
• RBT199-2015 Technical Specifications for Biosafety Performance Evaluation of Laboratory Equipment

Applications

• Rearing, handling and experimental operations on laboratory ferrets in BSL-3 and above facilities.
• Respiratory virus and infectious disease research requiring strict biosafety and sterility controls.

Technical Specifications

• Series: LH7-1D
• Models: LH7-1D-G6-BS (two vertically arranged chambers); LH7-1D-G8-BS (single chamber)
• Overall dimensions: G6-BS L2700×W800×H1890mm; G8-BS L2040×W920×H2200mm
• Chamber internal dimensions: G6-BS L1500×W800×H800mm; G8-BS L1600×W920×H900mm
• Integrated sleeves: G6-BS 3 sets on operating face; G8-BS 4 sets per operating face
• Pressure control range: -150 to 150 Pa; minimum differential ≥ 50 Pa
• Air changes: ≥ 20 ACH
• Filtration: Multi-stage exhaust with terminal H14 HEPA (99.995% MPPS per EN1822) and BIBO replacement option
• Leakage rate: < 0.25% Vol/hr at -250 Pa
• Transfer chamber options: UV, pulsed xenon, atomized spray; VH2O2 interface reserved or optional built-in VH2O2
• Monitoring: differential pressure, temperature, humidity, ammonia concentration
• Construction: rounded corners, no cleaning dead zones, tempered glass viewing window with mechanical sealing
• Additional: Modular installation, built-in lighting, online fan replacement for exhaust units
