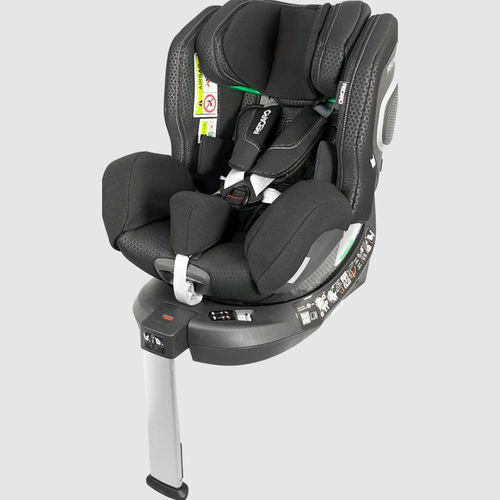

Car seat RECARO XENON Reha

for disabled childrenergonomicheight-adjustable

Overview
The RECARO XENON Reha is a pediatric rehabilitation car seat designed for children with special needs (user height 61 - 125 cm). It provides 360° rotation for simplified boarding, adjustable ergonomic support, integrated ventilation and high-quality materials. Developed jointly by Thomashilfen and RECARO, it combines positioning, comfort and crash-tested safety for clinical and transport use.

Key benefits & features

• 360° rotation — facilitates entry/exit; rotation limits ensure correct travel direction according to age/height
• Ergonomic adjustable headrest — grows with the child and supports head and neck stability
• Built-in speakers in side panels — positioned so magnets are not close to the head; compatible with hearing aids/implants
• Lateral trunk supports — variable padding thickness and precise mounting on the backrest for individualized upper-body stability
• Removable abduction block — secures correct pelvic alignment
• Padded 5-point harness — secure fixation, optimized positioning and comfort
• ISOFIX & support leg — quick, secure installation to reduce fitment errors
• Ventilation openings — promote air circulation and heat dissipation
• 170° tilt-in-space — supports posture, head and trunk stability during travel
• Improved side-impact protection — energy-absorbing elements increase stability and dissipate impact forces
• Removable additional head padding, lateral seat upholstery, leg guides, crotch pads and removable covers

Accessories (selection)

• Forehead support (item code shown on site)
• Angle-adjustable lateral trunk supports (item code shown on site)
• Chin support (item code shown on site)
• Table / anterior support (item code shown on site)
• Footrest (item code shown on site)
• Car seat protection mat including back (protects vehicle upholstery, with pockets)
• Anti-escape vest (item code shown on site)

Standard features
Seat and backrest with integrated, multi-position headrest; ISOFIX connection; enhanced side-impact protection system with energy-absorbing elements; removable additional head padding; lateral trunk supports; lateral seat upholstery; leg guides; 5-point padded harness with shoulder and crotch pads; removable abduction guides; removable covers.

Technical data
Dimensions & Weights — RECARO XENON Reha
Seat depth (to crotch strap): 18 cm / 7.1"
Seat depth (to front edge): 33 cm / 13.0"
Seat width: 34 cm / 13.4"
Shoulder height (strap guide): 26 - 42 cm / 10.2 - 16.5"
Shoulder width: 34 cm / 13.4"
Seat tilt-in-space: up to 170°
Overall dimensions (W x H x D): 44 x 58 - 77 x 58.5 cm / 17.3 x 22.8 - 30.3 x 23.0"
Seat weight (base model): 11.9 kg / 26.2 lbs
User height: 61 - 125 cm / 24.0 - 49.2"

Technical specifications

• Intended user height: 61–125 cm (24.0–49.2")
• Seat weight (base): 11.9 kg / 26.2 lbs
• Seat tilt-in-space: up to 170°
• 360° swivel function with usage limits by age/height
• Integrated adjustable headrest
• 5-point padded harness with shoulder and crotch padding
• ISOFIX attachment plus support leg for secure installation
• Ventilation openings for improved air circulation
• Enhanced side-impact protection with energy-absorbing elements
• Multiple accessory options for individualized positioning (forehead support, chin support, lateral trunk supports, abduction block, table/anterior support, footrest, protection mat, anti-escape vest)
• Tested in extensive crash tests with criteria comparable to ECE R129; production and quality management per DIN ISO 9001 and DIN ISO 13485.
