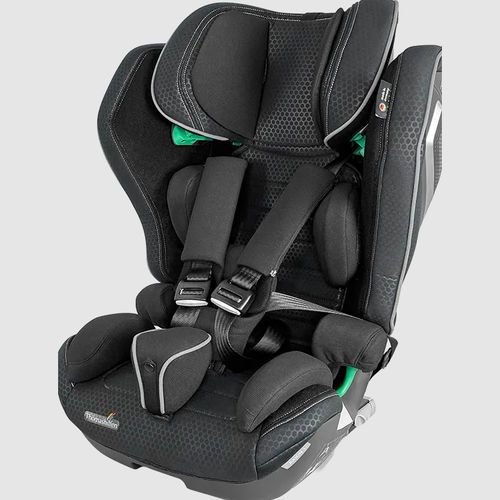

Car seat RECARO Axion 1 Reha

for disabled childrenheight-adjustable

Product overview
The RECARO Axion 1 Reha is a rehabilitation car seat for children with special needs. It is configurable to individual support requirements, promotes safe mobility and perceptual input during transport, and is manufactured to high "Made in Germany" quality standards. The seat is suitable for users approximately 100–150 cm in height and up to 50 kg in weight.

Key benefits

• Individual support: Head, chest, lateral seat and leg pads plus removable abduction guides allow flexible, patient-specific positioning.
• Advanced side impact protection: Trapezoidal side wings provide stability and energy absorption in side impacts.
• Integrated sound system: Speakers in the side panels with connector for audiobooks/music; positioned to minimise interference with hearing aids or implants.
• Secure installation: ISOFIX connection for rapid, reliable vehicle mounting.
• Adjustable headrest: Height-adjustable headrest that adapts stepwise as the child grows; removable head padding for smaller users.
• Integrated 5-point harness: Enables precise adjustment of seating position; includes shoulder strap padding and crotch pad.
• Easy-care covers: Removable, washable covers certified to OEKO-TEX® for hygiene and comfort.
• Modular accessories: Lateral trunk supports, abduction guide, leg guides, footrest options and various bases/adapter plates for different vehicle installations.

Special Edition
The Special Edition pairs the rehabilitation system with an orange-and-black colour scheme while maintaining the same safety features and functional options.

Rehab seal and certifications
The seat is developed specifically for children with special needs and tested to stringent safety criteria comparable to ECE R129. Manufacturing is certified to DIN ISO 9001 and the quality management system complies with DIN ISO 13485.

Accessories & functional options (examples)

• Swivel base (left-turning / right-turning)
• Tilting base; swivel-and-tilting base
• Adapter plate and footrest adapters (including Seatfix variants)
• Footrest (foldable and angle-adjustable)
• Stabilizing bow (for non-ISOFIX installations)
• Adjustable abduction guide
• Seat depth extension
• Chin support, forehead support, lateral trunk supports with lockable chest belt, anti-escape vest, chest clip and car seat protection mat

Dimensions & Weights
Seat depth (behind crotch strap): 22 cm / 8.7"
Seat depth (behind front edge): 34 cm / 13.4"
Seat width: 27 cm / 10.6"
Back height (seat inside): 55–75 cm / 21.7–29.5"
Shoulder height (harness guide): 34–54 cm / 13.4–21.3"
Shoulder width: 35 cm / 13.8"
Seat tilt (with tilt plate): 2.5° / 5° / 7.5° / 10°
Overall dimensions (w x h x d): 52 x 63 x 39 cm / 20.5 x 24.8 x 15.4"
Weight of the seat (base model): 6 kg / 13.2 lbs
User height: 100–150 cm / 39.4"–59.1"
Max. user weight: 50 kg / 110.2 lbs

Standard features (summary)

• Seat and backrest with integrated, multi-position headrest
• ISOFIX connection
• Enhanced side impact protection with energy-absorbing elements
• Removable additional head padding
• Lateral trunk supports and lateral seat upholstery
• Leg guides and integrated 5-point harness
• Shoulder strap padding and crotch pad
• Back stabilizer; removable abduction guide; removable, washable OEKO-TEX® covers

Technical specifications

• Intended user height: 100–150 cm
• Max. user weight: 50 kg
• Seat depth: 22 cm (behind crotch strap) / 34 cm (behind front edge)
• Seat width: 27 cm
• Back height (seat inside): 55–75 cm
• Shoulder height (harness guide): 34–54 cm
• Shoulder width: 35 cm
• Seat tilt (with tilt plate): 2.5° / 5° / 7.5° / 10°
• Overall dimensions (w x h x d): 52 x 63 x 39 cm
• Seat weight (base model): 6 kg
• Integrated 5-point harness; ISOFIX installation; side impact protection; removable, washable OEKO-TEX® covers
