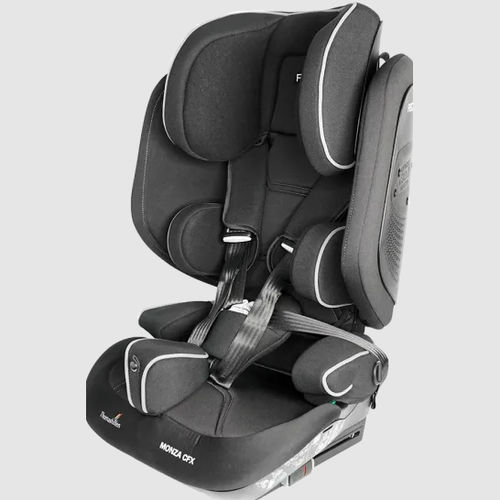

Car seat RECARO Monza CFX Reha

for disabled childrenheight-adjustableswivel

Overview
The RECARO Monza CFX Reha is a rehab child car seat designed to provide tailored positioning, safety and comfort for children with special needs. It supports individual growth and therapeutic positioning through modular padding, a 10-position adjustable headrest and an integrated 5-point positioning harness.

Test / Certification

• DEKRA test (rehab), including assessment of compatible rehab accessories

Special features

• Maximum positioning: Shaped support pads and integrated 5-point harness ensure a secure upright position with maintained trunk and lateral support.
• Custom adjustment: Velcro-compatible back plate for precise placement of trunk supports and individual solutions.
• Multifunctional base (accessory): Tilt-in-space base options relieve pressure and allow alternative seating angles when prolonged upright sitting is difficult.

Examples of functions

• Movable side wings that adapt automatically to the child’s height, providing space without compromising lateral protection.
• Integrated 5-point harness that secures older children in an optimal, therapeutic seating position.
• Fixed lateral trunk supports that can be positioned precisely on the back plate via Velcro, enabling support without restricting mobility.
• Ergonomic 10-position height-adjustable headrest to accompany the child’s growth step by step.

Standard features
Seat shell with integrated 10-position headrest; integrated 5-point positioning belt; crotch pad; removable trunk and seat side pads; movable side wings; abduction block; integrated ISOFIX connectors; removable covers.

Adapter plate and functional accessories (selected)

• Adapter plate — item code 9800005300000
• Footrest adapter — item code 9800005310000
• Footrest adapter with Seatfix — item code 9800005320000 (suitability depends on vehicle ISOFIX lower anchorage position)
• Swivel base — item codes 9800005341000 (left-turning) / 9800005340000 (right-turning) (includes Seatfix)
• Tilting base — item code 9800005330000 (includes Seatfix)
• Swivel-and-tilting base — item codes 9800005351000 (left) / 9800005350000 (right) (includes Seatfix)
• Footrest (depth: 12 cm / 4.7") foldable and angle-adjustable — item code 9800005370000
• Stand, front (not applicable with existing footrest) — item code 9800005380000
• Stabilizing bow (if no ISOFIX is available) — item code 9800005360000
• Abduction block, adjustable — item code 9800005390000
• Seat depth extension — item code 9800005400000
• Cushion for function base — item code 9800005130000
• Back stabilizer (required when using swivel base) — item code 9800005430000
• Seat wedge (+10°) (below) — item code 9800008104000 (seat wedge and swivel base cannot be used together)
• Table / anterior support — item code 9800005440000
• Anti-Escape vest — item code 9800008260000
• Chest clip — item code 9800004230000

Dimensions & Weights
Seat depth (behind crotch strap): 22 cm / 8.7"
Seat depth (behind front edge): 33 cm / 13"
Seat width: 27 cm / 10.6"
Back height (seat inside): 55 - 72 cm / 21.7 - 28.3"
Shoulder height (harness guide): 31 - 51 cm / 12.2 - 20.1"
Shoulder width (base model): 35 - 45 cm / 13.8 - 17.7"
Distance between chest pads: 19 - 28 cm / 7.5 - 11.0"
Seat tilt (base model): 2.5° / 5° / 7.5° / 10°
Overall dimensions (w x h x d): 45 x 65 x 40 cm / 17.7" x 25.6" x 15.7"
Weight of the seat (base model): 8.5 kg / 18.7 lbs
User height: 100 - 150 cm / 39.4" - 59.1"
Max. user weight: 36 kg / 79.4 lbs

Technical specifications

• Brand: RECARO
• Model: RECARO Monza CFX Reha
• Headrest: 10-position height-adjustable
• Harness: integrated 5-point positioning belt
• Side supports: removable trunk and seat side pads; movable side wings
• Back plate: Velcro-compatible for individual positioning of supports
• ISOFIX: integrated ISOFIX connectors (base model)
• Seat tilt options: 2.5° / 5° / 7.5° / 10°
• Seat dimensions: depth 22–33 cm, width 27 cm
• Back height (internal): 55–72 cm
• Shoulder height (harness): 31–51 cm; shoulder width (base): 35–45 cm
• Distance between chest pads: 19–28 cm
• Overall dimensions (w x h x d): 45 x 65 x 40 cm
• Weight (base model): 8.5 kg
• User fit: height 100–150 cm; maximum user weight 36 kg
• Accessories: adapter plates, bases, footrests, stabilizers, abduction blocks, cushions and positioning aids (see accessories list above)
