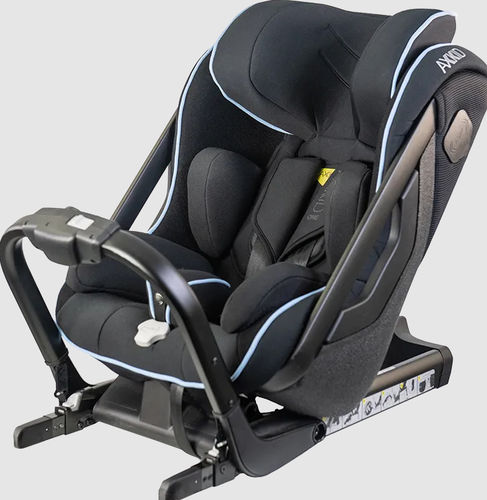

Car seat Axkid ONE 3 Reha

for disabled childrenheight-adjustable

Overview
Axkid ONE 3 Reha is an ISOFIX rear-facing child car seat designed for children with disabilities, allowing rear-facing travel up to a body height of 125 cm. The seat uses force-absorbing headrest geometry and materials to protect the head and neck and is engineered for fast, repeatable installation in under 30 seconds without using the vehicle belt, reducing common installation errors.

Key features

• Automatic rebound bar: secures the seat in all crash types (including roll-over), facilitates installation and increases legroom; enables installation in under 30 seconds.
• Easy Installation System with six clear steps; base indicator shows correct (green) or incorrect (red) installation.
• ASIP (Side Impact Protection): lateral energy absorbers, mountable on either side.
• Central adjustment wheel: stepless seat angle adjustment up to 42° for sitting, resting or sleeping positions.
• Integrated 5-point harness with central adjuster and anti-twist connector for quick tensioning and secure fit without vehicle belt.
• Sliding seat technology: maximises legroom and supports long-term rear-facing use throughout childhood.
• Adjustable recline (sleep-well system) with multiple resting positions.
• REHAB equipment included: abduction block, hip guide pads, head cushion, trunk pads for enhanced support.

Included rehab equipment

• Removable abduction block
• Adjustable, removable hip guide pads
• Head cushion for additional head support
• Removable, adjustable trunk pads for lateral support

Examples of functions

• Reboarder configuration: rear-facing orientation to protect the child’s head in frontal impact.
• Lateral trunk pads: Velcro-mounted on large-area velour upholstery to improve upper-body support.
• Central adjustment wheel: allows seat inclination up to 42° for varied activities.
• Leg guide pad: reduces effective seat width and provides extra support for smaller users; positionable individually.

Dimensions & Weights (table)
Seat depth (to crotch strap): 16 cm / 6.3"
Seat depth (to front edge): 28 cm / 11.0"
Seat width: 21–29 cm / 8.3–11.4"
Vertex height: 52–63 cm / 20.5–24.8"
Back height: 30–41 cm / 11.8–16.1"
Shoulder height (harness guide): 26–37 cm / 10.2–14.6"
Seat tilt (basic model): 45° / 65°
Overall dimensions (W x H x D): 44 x 76 x 54 cm / 17.3 x 29.9 x 21.3"
Seat weight (basic model): 9.9 kg / 21.8 lbs
User height: 61–125 cm / 24–49.2"
Max. user weight: 23 kg / 50.7 lbs

Technical specifications

• Seat shell: rear-facing design
• Headrest: 12-position height-adjustable headrest
• Integrated 5-point harness with central adjuster and anti-twist connector
• Height-adjustable shoulder belt with Axkid ONE 3 Reha belt padding system including small crotch pad
• Force-absorbing headrest geometry and materials
• Side impact protection (ASIP)
• Automatic rebound bar with integrated audible indicator
• ISOFIX connectors and support base
• Sliding seat technology for increased legroom
• Removable, washable covers
• Removable trunk and hip guide pads; removable abduction block
• Carrying handle
• Adjustable resting and sleeping positions; central wheel for seat angle adjustment up to 42°
• Suitable user height: 61–125 cm; max. user weight: 23 kg
• Seat weight (basic model): 9.9 kg
• Overall dimensions (W x H x D): 44 x 76 x 54 cm
