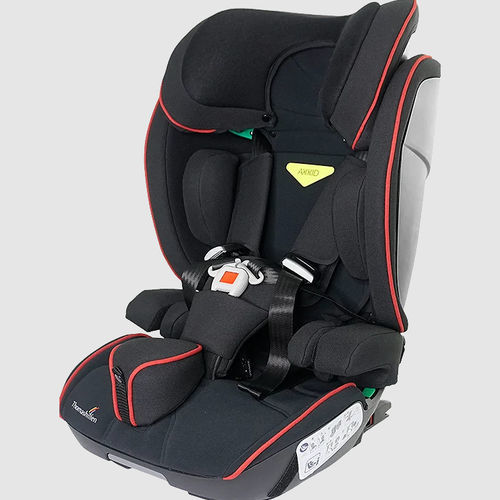

Car seat Axkid NEXTKID Reha

for disabled childrenheight-adjustableswivel

Overview
The Axkid NEXTKID Reha is a pediatric rehabilitation car seat providing individualized positioning via asynchronously adjustable side wings and a separately adjustable 8-position headrest. It adapts to growth and clinical needs, has a lightweight design (approx. 8–8.5 kg) and is suitable for users from 100 to 150 cm in height and up to 50 kg in weight.

Key benefits

• Four-stage independently adjustable side wings for tailored lateral trunk support (suitable for scoliosis, spasms and varied body shapes).
• Separately adjustable 8-position headrest allowing independent height and lateral configuration.
• Lightweight seat (≈8–8.5 kg) to facilitate transfers and handling by caregivers and families.
• Integrated ISOFIX connectors with visual safety indicator (green/red) for quick, secure installation.
• Wide accessory range (swivel base, tilt base, footrest, abduction block, seat depth extension, etc.) to meet different clinical and handling requirements.

Special features (additional details)

• Asynchronous 4-step adjustment of side wings enables precise individualized lateral support and close fit to the velour upholstery.
• Backrest and headrest combination ensures consistent support across ages and sizes.
• High‑function bases (swivel, tilt, or combined) extend ergonomics and transfer options.
• Large velour-covered areas allow secure attachment of lateral trunk supports and other positioning aids.

Accessories (examples)

• Adapter plate (required for many functional accessories).
• Swivel base (facilitates transfers; release lever configurable for right or left rotation).
• Tilting base (seat tilt in 4 stages: 2.5° / 5° / 7.5° / 10°).
• Combined tilting + swivel base.
• Footrest and footrest support fitting (with or without SEATFIX).
• Seat depth extension.
• Removable, adjustable abduction block to improve leg control.
• Table / anterior support.
• Cushion for function base.
• Chin support.
• Anti-escape vest.
• NapUp seating aid.
• Back stabilisers (included in the basic model).

Standard features
Seat and backrest with integrated 8-position height-adjustable headrest; integrated 5-point harness with central adjuster; height-adjustable shoulder pads with Axkid belt pad system including small crotch pad; removable abduction block; removable trunk and seat side pads; 4-stage adjustable side wings; integrated ISOFIX connectors; removable covers; back stabilisers.

Technical data (table)
Dimensions & Weights | Axkid NEXTKID Reha
Seat depth (behind crotch strap) | 23 cm / 9.1"
Seat depth | 37 cm / 14.6"
Seat width | 22 cm - 29 cm / 8.7 - 11.4"
Back height (seat inside) | 75 cm / 29.5"
Shoulder height (harness guide) | 33 - 51 cm / 11.8 - 20.1"
Shoulder width | 36 - 42 cm / 13.8"
Seat tilt (with tilt plate) | 2.5° / 5° / 7.5° / 10°
Overall dimensions (w x h x d) | 44 x 62 x 48 cm / 17.3 x 24.4 x 18.9"
Weight of seat | 8.5 kg / 18.7 lbs
User height | 100 - 150 cm / 39.4 - 59.1"
Max user weight | 50 kg / 110.2 lbs

Technical specifications

• Adjustable side wings: 4-stage asynchronous adjustment for individualized lateral support.
• Headrest: 8-position height adjustment; adjustable independently of side wings.
• Harness: integrated 5-point harness with central adjuster and height-adjustable shoulder pads.
• ISOFIX: integrated ISOFIX connectors with visual safety indicator for correct anchoring.
• Weight: approx. 8–8.5 kg for the seat.
• Application range: suitable for users 100–150 cm height, up to 50 kg weight.
• Function base options: swivel base, tilting base (4 tilt stages), or combined solutions; adapter plate required for many accessories.
• Covers and padding: removable covers, large velour upholstery areas for attaching lateral trunk supports and accessories.
