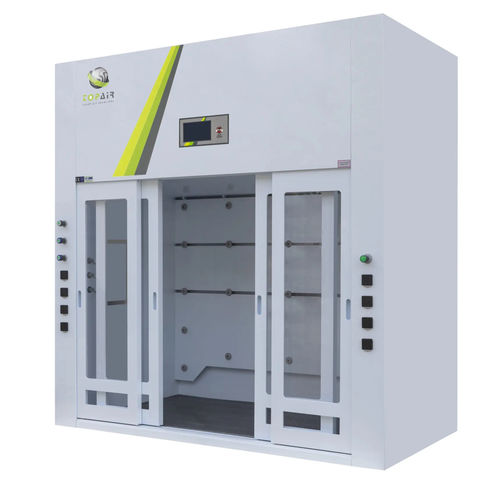

Chemical fume hood FH-120-WI-PP-H

exhaustlaboratoryfloor-standing

Overview
TopAir’s floor-mounted fume hood delivers a wide front opening to accommodate bulky, heavy or tall equipment and to protect laboratory personnel from corrosive fumes, dangerous gases and organic vapors. Constructed in chemical-resistant welded polypropylene, the hood vents vapors via an external fan mounted on the roof or an external wall. Units are designed for heavy chemical use and are independently CE certified.

Structure

• 8 mm welded polypropylene construction for high chemical resistance
• 5 mm safety front glass with counterweight system
• Air intake via top and rear panels
• Horizontal sliding sash for full-width access

Features

• Standard control: 7” color touch display for lighting and electrical outlets
• Optional AFA: airflow alarm and display (7” screen)
• Optional VAV: variable air volume with automatic velocity control, VFD, temperature and humidity display (10.1” screen)
• 800 lux LED illumination isolated from work area; explosion-proof light optional
• Optional accessories: water taps, gas taps, vacuum taps, polypropylene sink, triplex glass, sockets, scaffolding, external fan
• CE certified

Models
FH-120-WI-PP-H | FH-150-WI-PP-H | FH-180-WI-PP-H | FH-200-WI-PP-H | FH-250-WI-PP-H
External dimensions (W x D x H): 1200 x 930 x 2320 mm — 1500 x 930 x 2320 mm — 1800 x 930 x 2320 mm — 2000 x 930 x 2320 mm — 2500 x 930 x 2320 mm (47.3 x 36.6 x 91.3 in — 59.0 x 36.6 x 91.3 in — 70.8 x 36.6 x 91.3 in — 78.7 x 36.6 x 91.3 in — 98.4 x 36.6 x 91.3 in)
Workspace (W x D x H): 1000 x 650 x 1990 mm — 1300 x 650 x 1990 mm — 1600 x 650 x 1990 mm — 1800 x 650 x 1990 mm — 2300 x 650 x 1990 mm (39.4 x 25.6 x 78.3 in — 51.2 x 25.6 x 78.3 in — 63.0 x 25.6 x 78.3 in — 70.8 x 25.6 x 78.3 in — 90.5 x 25.6 x 78.3 in)
Exhaust collar: 1 x 12" / 315 mm (smaller models) — 2 x 12" / 315 mm (larger models)
Front sash max opening: 1800 mm / 70.8 in (all models)
Production / test standard: CE
Air velocity: 0.5 ± 0.1 m/s (100 ± 20 fpm)
Hood material: polypropylene (welded, 8 mm)
Control (standard): 7” color touch display; optional AFA or VAV systems
Optional accessories: water tap, gas tap, vacuum tap, PP sink, triplex glass, explosion-proof light
Power: 110/220 V, 50/60 Hz (single-phase standard; three-phase on request)
Illumination: 800 lux LED

Accessories

• FH-AFA — Airflow alarm and display (7” option)
• FH-FAN-1500-300 — Centrifugal fan 1.5 kW, 2800 rpm, IE3, DIA 300 mm
• FH-FAN-750 — Centrifugal fan 0.75 kW, 2800 rpm, IE3, DIA 250 mm
• FH-GTAP — Gas tap
• FH-SOCKET — Power outlet
• FH-VAV — Airflow monitor with audible alarm (VAV + VFD) including 7” LCD touch controller
• FH-WTAP — Water tap

Technical specifications

• Models: FH-120-WI-PP-H, FH-150-WI-PP-H, FH-180-WI-PP-H, FH-200-WI-PP-H, FH-250-WI-PP-H
• External width: 1200–2500 mm; depth: 930 mm; height: 2320 mm
• Workspace depth: 650 mm; workspace height: 1990 mm
• Air velocity: 0.5 ± 0.1 m/s (100 ± 20 fpm)
• Exhaust collar: 1 or 2 x 12" (315 mm) depending on model
• Construction material: welded polypropylene 8 mm
• Front sash: 5 mm safety glass with counterweight; max opening 1800 mm
• Control: standard 7" color touch screen; optional AFA or VAV with enhanced displays
• Illumination: 800 lux LED; explosion-proof option available
• Power supply: 110/220 V, 50/60 Hz (single-phase standard; three-phase on request)
