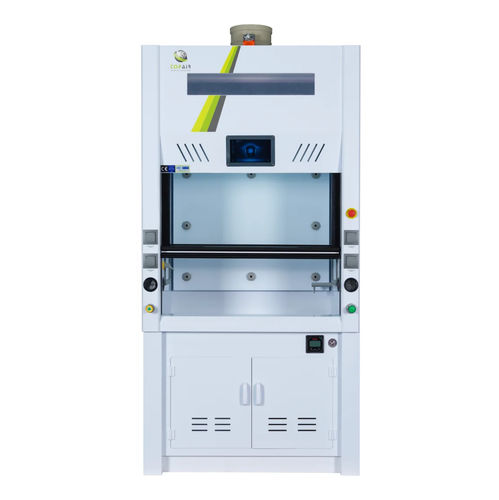

Chemical fume hood FH-120-WS

exhaustlaboratoryfloor-standing

Product overview
Polypropylene laboratory fume hood with integrated wet scrubber designed to capture chemical vapours, mists and aerosols. The wet scrubber media directs contaminants to a water tank while an upper mist eliminator protects the exhaust fan. Constructed from non-corrosive polypropylene for high chemical resistance. Suitable for handling acids, organic solvents and aggressive reagents. CE certified for industrial and laboratory applications.

Structure

• 8 mm welded polypropylene panels with high chemical resistance
• Polypropylene worktop (optional: stainless steel, ceramic, epoxy, HPL)
• 5 mm tempered front safety glass with counterweight sash system
• Lower vented polypropylene base cabinet
• Air intake from top and rear panels for optimized flow

Wet scrubber functionality

• Spray nozzles to distribute scrubbing liquid
• Upper mist eliminator to protect fan and reduce carryover
• Scrubbing media that captures particulates and soluble vapours
• Water pump and dedicated water tank for circulation
• Accessible layout for maintenance and replacement of media

Features & control options

• 800 LUX LED lighting isolated from the work area (option: explosion-proof light)
• Standard 7” color touchscreen controlling lighting and power outlets
• Optional control upgrades: AFA system with 7” screen showing air velocity and alarm
• VAV option with 10.1” screen, automatic air velocity control (VFD included), temperature & humidity display
• Active sash control with 10.1” display for automatic sash motion and proximity sensing to reduce energy use
• Optional taps, sinks, sockets, scaffolding and external fan
• pH meter option with automatic dosing pump (FH-PHM)
• CE certified

Models (overview)
Spec / Model | FH-120-WS | FH-150-WS | FH-180-WS | FH-200-WS | FH-250-WS
External Dimensions W x D x H | 1200×980×2370 mm | 1500×980×2370 mm | 1800×980×2370 mm | 2000×980×2370 mm | 2500×980×2370 mm
Exhaust Collar Dimensions | 1 × 10”/250 mm | 1 × 10”/250 mm | 1 × 10”/250 mm | 1 × 12”/315 mm | 2 × 10”/250 mm
WE CAN CUSTOMIZE ANY SIZE – EVEN A SINGLE UNIT!
Workspace (W x D x H) | 1000×630×1000 mm | 1300×630×1000 mm | 1600×630×1000 mm | 1800×630×1000 mm | 2300×630×1000 mm
Front sash max opening | 720 mm (all models)
Face air velocity | 0.5±0.1 m/s (100±20 fpm)
Hood material | Polypropylene (all models)
Worktop material | Standard: polypropylene. Options: HPL / ceramic / epoxy / stainless steel
Control system | Standard: 7” color display with on/off controls. Optional: AFA, VAV (with VFD), Active sash control
Power supply | 110/220 V, 50/60 Hz (single-phase standard; three-phase on request)
Illumination | 800 lux LED

Accessories (select)

• FH-PHM — pH meter with automatic dosing pump
• FH-PP-KP4B — Polypropylene cup sink (multiple sizes)
• FH-WS-PH — pH meter
• FH-WS-PH-DZ — pH meter with dosing pump
• FH-FAN-750 — Centrifugal fan 0.75 kW, 2800 rpm / IE3, DIA 250 mm
• FH-GTAP — Gas tap
• FH-KIT — Kit: 1 water tap, 1 gas tap, 1 cup sink, 4 power outlets
• FH-SOCKET — Power outlet
• FH-VAV — Air flow monitor with audible alarm, VAV+VFD installed, 7” LCD touch controller
• FH-WTAP — Water tap

Technical specifications

• Material: non-corrosive polypropylene (hood and cabinet)
• Construction: 8 mm welded polypropylene structure
• Front safety: 5 mm safety glass window with counterweight sash
• Workspace sizes: see models — W range 1000 mm to 2300 mm
• External dimensions per model: see models table above
• Exhaust collar: single or double configurations depending on model
• Face air velocity: 0.5±0.1 m/s (100±20 fpm)
• Wet scrubber components: spray nozzles, mist eliminator, scrubbing media, water pump, water tank
• Lighting: 800 lux LED (isolated from work area; explosion-proof optional)
• Control: standard 7” touchscreen; optional AFA, VAV (with VFD), Active sash control (10.1” display)
• Power supply: 110/220 V, 50/60 Hz (single-phase standard; three-phase available on request)
• Certifications: CE certified
