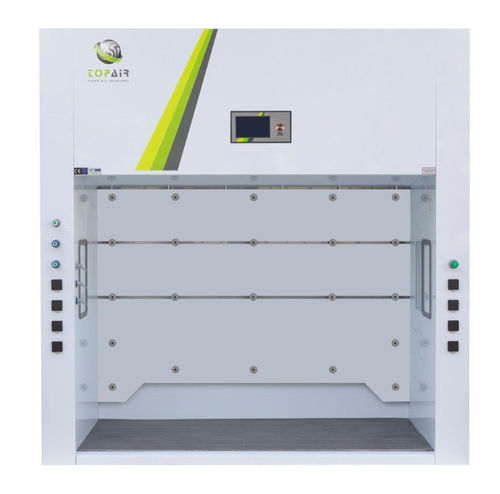

Exhaust fume hood FH-120-WI-PP

containmentlaboratoryfor hazardous materials

Product description
The TopAir floor-mounted fume hood provides a wide front opening to accommodate large, heavy or tall equipment. Constructed in chemical-resistant welded polypropylene, it protects laboratory personnel from fumes produced by acids, bases, hazardous gases and organic solvents. The unit is ducted to an external fan mounted on the roof or an external wall and is CE certified for use with aggressive chemicals.

Structure

• 8 mm welded polypropylene panels with high chemical resistance
• 5 mm safety front glass with counterweight sash
• Top and rear air inlets for balanced ventilation
• Vertical sliding sash

Features

• Standard control: 7” color touch display controlling lighting and outlets
• Optional AFA: 7” screen with airflow display and alarm
• Optional VAV: 10.1” screen with VAV control, automatic air velocity (includes VFD), temperature and humidity display
• 800 lux LED lighting isolated from the work area (explosion-proof option available)
• Optional accessories: water/gas/vacuum taps, PP sink, triplex glass, explosion-proof lighting, sockets, scaffolding, external fan
• CE certified

Models (spec overview)
Spec / Model | FH-120-WI-PP | FH-150-WI-PP | FH-180-WI-PP | FH-200-WI-PP | FH-250-WI-PP
External Dimensions W x D x H | 1200 x 930 x 2320 mm (47.3 x 36.6 x 91.3") | 1500 x 930 x 2320 mm (59.0 x 36.6 x 91.3") | 1800 x 930 x 2320 mm (70.8 x 36.6 x 91.3") | 2000 x 930 x 2320 mm (78.7 x 36.6 x 91.3") | 2500 x 930 x 2320 mm (98.4 x 36.6 x 91.3")
Workspace (W x D x H) | 1000 x 650 x 1990 mm (39.4 x 25.6 x 78.3") | 1300 x 650 x 1990 mm (51.2 x 25.6 x 78.3") | 1600 x 650 x 1990 mm (63 x 25.6 x 78.3") | 1800 x 650 x 1990 mm (70.8 x 25.6 x 78.3") | 2300 x 650 x 1990 mm (90.5 x 25.6 x 78.3")
Exhaust Collar Dimensions | 1 x 12" / 315 mm | 1 x 12" / 315 mm | 1 x 12" / 315 mm | 2 x 12" / 315 mm | 2 x 12" / 315 mm
Front Sash Max Opening | 1800 mm / 70.8" (all models)
Production / Test Standard | CE (all models)
Air Velocity | 0.5 ± 0.1 m/s (100 ± 20 fpm)
Hood Material | White polypropylene
Control System | Standard: 7” color display with on/off controls; optional AFA/VAV systems available
Power Supply | 110/220 V, 50/60 Hz. Standard single-phase; three-phase available by special order
Illumination | 800 lux LED lights

Accessories (common options)

• FH-AFA: Airflow alarm and display (7” screen)
• FH-FAN-1500-300: Centrifugal fan 1.5 kW, 2800 rpm, IE3, DIA 300 mm
• FH-FAN-750: Centrifugal fan 0.75 kW, 2800 rpm, IE3, DIA 250 mm
• FH-GTAP: Gas tap
• FH-SOCKET: Power outlet
• FH-VAV: Air flow monitor with audible alarm, VAV + VFD installed, including 7” LCD touch screen controller
• FH-WTAP: Water tap

Technical specifications

• Body: Welded polypropylene, 8 mm thickness
• Front window: 5 mm safety glass with counterweight sash
• Ventilation: Exhausted via external fan (roof or wall); exhaust collar(s) per model
• Work opening air velocity: 0.5 ± 0.1 m/s
• Controls: Standard 7” touchscreen; optional AFA and VAV (with VFD)
• Lighting: 800 lux LED; explosion-proof option available
• Power: 110/220 V single-phase standard; three-phase on request
• Certifications: CE; additional test reports available on request
• Customization: Multiple standard sizes; custom sizes and configurations available
