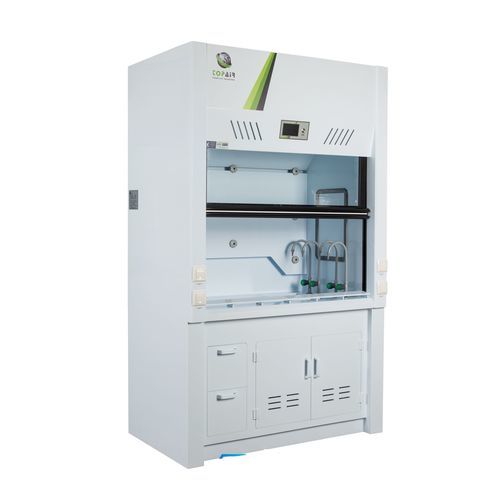

Chemical fume hood FH-120-PP

exhaustlaboratoryfor research laboratories

Overview
TopAir polypropylene fume hoods are constructed from 8 mm welded non‑corrosive polypropylene panels offering high chemical resistance. They extract hazardous fumes from acids, bases, volatile organic compounds and other aggressive chemicals to protect laboratory personnel. Exhaust is routed outdoors via a roof or external‑wall fan. Units are independently tested and certified to EN‑14175, ASHRAE 110‑1995 and CE.

Structure / Main components

• 8 mm welded polypropylene panels with high chemical resistance
• Polypropylene worktop (optional: stainless steel, ceramic, epoxy, HPL)
• 5 mm front safety glass sash with counterweight system
• Lower ventilated base cabinet in polypropylene
• Air intake and exhaust via top and rear panels

Features

• Basic control: 7” color touchscreen controlling lighting and power outlets
• Optional control upgrades: AFA, VAV, Active systems
• AFA: 7” screen with airflow display and alarm
• VAV: 10.1” screen with automatic airflow control (includes VFD), temperature & humidity display
• Active: 10.1” screen with energy saver, automatic sash motion and proximity sensing
• 800 lux LED lighting separated from the work area (explosion‑proof light optional)
• Optional accessories: water/gas/vacuum taps, polypropylene sinks, sockets, scaffolding, outdoor fan
• Certified to EN‑14175, ASHRAE 110‑1995, CE

Models (spec / model table)
Spec/ Model | FH-120-PP | FH-150-PP | FH-180-PP | FH-200-PP | FH-220-PP
External Dimensions W x D x H | 1200 x 830 x 2320mm (47.3 x 32.6 x 91.3”) | 1500 x 830 x 2320mm (59.0 x 32.6 x 91.3”) | 1800 x 830 x 2320mm (70.8 x 32.6 x 91.3”) | 2000 x 830 x 2320mm (78.7 x 32.6 x 91.3”) | 2200 x 830 x 2320mm (86.6 x 32.6 x 91.3”)
Workspace (W x D x H) | 1000 x 630 x 1170mm (39.4 x 24.8 x 46”) | 1300 x 630 x 1170mm (51.2 x 24.8 x 46”) | 1600 x 630 x 1170mm (63 x 24.8 x 46”) | 1800 x 630 x 1170mm (70.8 x 24.8 x 46”) | 2000 x 630 x 1170mm (78.8 x 24.8 x 46”)
Exhaust Collar Dimensions | 1 x 10”/250MM | 1 x 10”/250MM | 1 x 10”/250MM | 1 x 12”/315MM | 1 x 12”/315MM
Front Sash Max Opening | 720 mm / 28.3” (all models)
Production / Test Standard | EN-14175 / ASHRAE 110-1995
Air Velocity | 0.5±0.1 m/s (100±20 fpm)
Hood Material | Polypropylene
Worktop | Standard: polypropylene. Other options: HPL / Ceramic / Epoxy / Stainless steel
Optional System | Standard control: 7” color display with on/off controls; upgrades available (AFA, VAV, Active)
Add-on accessories | Water tap / gas tap / vacuum tap / polypropylene sink / triplex glass / explosion-proof light
Power Supply | 110/220 V, 50/60 Hz. Single-phase standard; three-phase available by special order
Illumination | 800 lux LED lights

Accessories (summary table)
Model | Description
FH-ACTIVE | Active sash system with 10.1” screen
FH-AFA | 7” control with airflow alarm/display
FH-FAN-1500-300 | Centrifugal fan 1.5 kW 2800 rpm / IE3 DIA 300 mm
FH-PP-KP4B | Polypropylene cup sink (multiple sizes available)
FH-FAN-750 | Centrifugal fan 0.75 kW 2800 rpm / IE3 DIA 250 mm
FH-GTAP | Gas tap
FH-KIT | Kit: 1 water tap, 1 gas tap, 1 cup sink and 4 power outlets
FH-SOCKET | Power outlet
FH-VAV | Air flow monitor with audible alarm VAV + VFD installed, including 7’’ LCD touch screen controller
FH-WTAP | Water tap

Technical specifications

• Material: welded polypropylene panels (8 mm) with high chemical resistance
• Front safety glass: 5 mm with counterweight sash system
• Worktop: standard polypropylene; options: HPL, ceramic, epoxy, stainless steel
• Air ventilation: inlet/exhaust via top and rear panels; exhaust collar sizes by model
• Air velocity (nominal): 0.5 m/s ±0.1 m/s (100 ±20 fpm)
• Lighting: 800 lux LED separated from work area; explosion‑proof light optional
• Control systems: basic 7” touchscreen or optional AFA (7”), VAV (10.1” with VFD), Active (10.1”)
• Power: 110/220 V, 50/60 Hz single-phase standard; three-phase available on request
• Standards & certifications: EN-14175, ASHRAE 110-1995, CE (independently tested)
• Available widths: FH-120-PP, FH-150-PP, FH-180-PP, FH-200-PP, FH-220-PP
• Optional accessories: taps (water/gas/vacuum), sinks, explosion-proof lighting, fans, installation kits
