Arterial system vascular model FAX006D

blood vesselsarterywhole body

Product Description

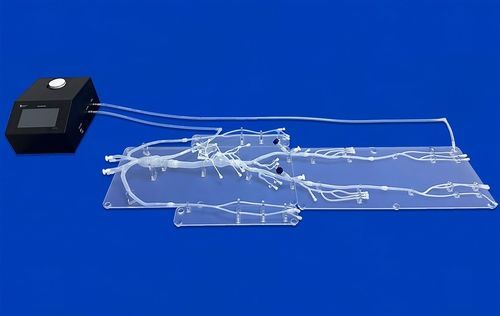

This coated model includes the thoracic aorta, abdominal aorta, iliac arteries, femoral arteries, anterior tibial arteries, posterior tibial arteries, and bilateral radial arteries.
The abdominal aorta is designed as an independent module and can be replaced with one aneurysm-free module or any of three aneurysm modules of different sizes. The left femoral artery contains a replaceable stenotic lesion, while the right femoral artery contains a replaceable chronic total occlusion (CTO) lesion.
The entire model is mounted on an acrylic plate. Customized connectors allow the relevant sections to be easily detached and replaced.

Product Applications
1.Development, testing, and validation of peripheral interventional devices, including guidewires, catheters, balloons, and stents.
2.Training in abdominal and peripheral interventional procedures, as well as device demonstrations.
3.Simulation of abdominal aortic aneurysm treatment procedures.
4.Training in interventional treatment of lower-extremity arterial occlusion, including the contralateral femoral crossover technique.
5.Quantitative blood-flow analysis and imaging studies, including CTA, DSA, MRA, OCT, and PIV.

Customization Services
1.The aortic arch can be customized as a Type I, Type II, Type III, or variant arch.
2.More complex vascular structures can be added to the abdominal section. Common lesions such as aneurysms, stenoses, and embolic occlusions can also be incorporated.
3.The size and location of the abdominal aortic aneurysm can be customized according to specific requirements.
4.Common lesions such as aneurysms, stenoses, and embolic occlusions can be added to the lower-extremity arteries as required.
5.The model can be customized and manufactured based on customer-provided CAD, STL, IGS, STEP, or other compatible data files.
