Whole body vascular model FAX009D

arteryblood vesselsarterial system

Product
Full-body arterial vascular training model FAX009D designed for simulation and hands-on training of arterial procedures, catheterization and vascular techniques. Intended for medical training centers, hospitals and device manufacturers.

Overview
Constructed in silicone with a representative arterial network to support practical exercises and competency assessment. Designed for use with standard training instruments and for demonstrations of vascular devices.

• Product Introduction:

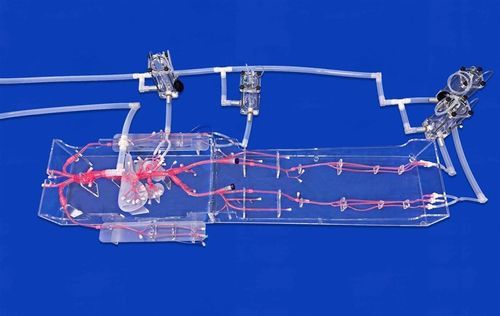

• This model extends from the dorsalis pedis artery to the aorta, and primarily consists of the lower extremity arteries, femoral arteries, abdominal peripheral arteries, thoracic aorta, aortic arch, and upper extremity arteries. Additional vascular branches are incorporated into the bilateral femoral arteries, brachial arteries, and renal arteries to simulate bleeding sites.The model is securely mounted on a frosted acrylic base with transparent acrylic supports and housed in a transparent acrylic case. The vascular system is fabricated from semi-transparent red material for enhanced visualization. The hepatic and renal arteries are mounted on anatomically shaped acrylic liver and kidney plates. The entire model is externally connected to a flow distribution system, with individual measuring sections connected to acrylic reservoirs and circulation tubing.
• Dedicated access ports are reserved at the radial artery and femoral artery for interventional device insertion. Through customized connectors, each section of the model can be freely connected, detached, and replaced. In addition, all components can be customized free of charge to meet your diverse training and testing requirements.
• Product Usage:
• 1.Designed for antegrade and retrograde transfemoral interventional procedure training.
• 2.Applicable for training and demonstration of peripheral vascular interventional procedures.
• 3.Suitable for the development, testing, and validation of peripheral interventional devices.
• Customization Options:
• 1.Thoracic Aorta: Configurable with Type I, Type II, Type III, or variant aortic arch anatomy. The left and right coronary arteries can also be incorporated, with customizable pathological conditions including coronary artery stenosis, bifurcation lesions, calcification, chronic total occlusion (CTO), and other common lesions.
• 2.Radial Artery: Available in both standard and three-dimensional anatomical configurations.
• 3.Abdominal Aorta: Optional branches include the hepatic, gallbladder, splenic, gastric, renal, pancreatic, superior and inferior mesenteric, and intercostal arteries. The vascular architecture can be simplified or made more complex according to specific requirements.
• 4.Lower Extremity Arteries: Common lesions such as chronic total occlusion (CTO) and embolism can be incorporated upon request.
• 5.Patient-Specific Customization: Models can be customized based on customer-provided CT, CAD, STL, STP, STEP, and other compatible digital data files.

Logistics & commercial information
Payment: T/T
Lead time: 7-15 days
Port: Ningbo, China
Shipping Methods: FedEx, DHL, EMS, UPS, TNT

Technical specifications

• Model: FAX009D
• Material: Silicone
• Custom service: providing free design service & technical solutions
• Payment terms: T/T
• Lead time: 7-15 days
• Port of shipment: Ningbo, China
• Available shipping methods: FedEx, DHL, EMS, UPS, TNT
