Whole body vascular model FAX003D

blood vesselsarteryarterial system

Product Description

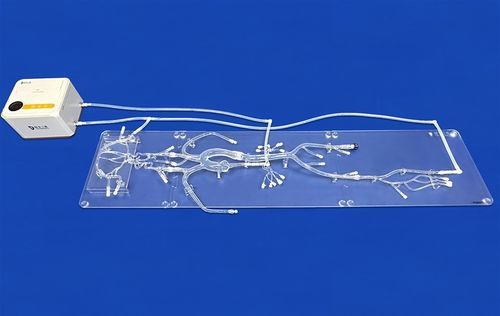

This model extends from the femoral artery to the A2 segment of the anterior cerebral artery (ACA). The intracranial vessels shown in the image represent healthy vascular anatomy. The model includes optimized intracranial arteries, carotid arteries, subclavian arteries, aorta, renal arteries, iliac arteries, femoral arteries, profunda femoris arteries, and other vascular structures.
The complete model is mounted on an acrylic plate. Through customized transparent connectors, the neurovascular, cardiothoracic, abdominal vascular, and femoral artery sections can be detached and replaced. Each section can also be customized according to different application requirements.

Product Applications
1.Development, testing, and validation of neurointerventional devices, including stent delivery catheters, microcatheters, microwires, and other related devices.
2.Neurointerventional training, education, and product demonstrations.
3.Peripheral interventional procedure training.
4.Quantitative blood-flow analysis using CTA, DSA, MRA, OCT, and PIV technologies.

Customization Services
1.The number, size, and location of intracranial aneurysms can be customized according to specific requirements.
2.Common intracranial lesions, such as stenosis and embolic occlusions of different severities and locations, can be incorporated.
3.The aortic arch can be customized as a Type I, Type II, Type III, or other special anatomical configuration.
4.More complex vascular structures can be added to the abdominal section.
5.Additional lower-extremity vascular lesions, such as aneurysms, stenoses, and embolic occlusions, can be incorporated according to specific requirements.
6.Customized models can be manufactured based on customer-provided CAD, STL, IGS, STEP, or other compatible 3D data files.
