Blood vessels vascular model FAX002D

arterywhole bodyarterial system

Overview
Full-body arterial vascular model designed for medical training and simulation. Manufactured in silicone to reproduce arterial anatomy and tactile properties for procedure rehearsal, demonstration and educational use.

Product Introduction:

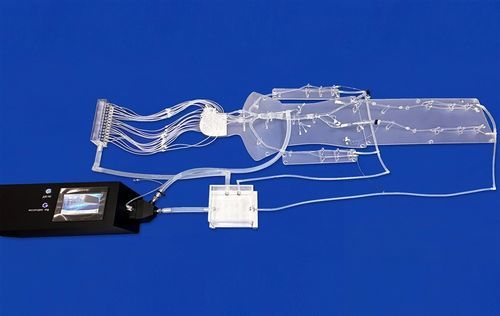

• This model consists of the intracranial cerebral vasculature, thoracic aorta, bilateral radial arteries, abdominal aorta, femoral arteries, and other major arterial vessels. The intracranial section features a complete cerebral vascular network. The model is mounted on a human-shaped acrylic base with transparent acrylic supports to maintain the anatomical three-dimensional configuration. All distal intracranial branches are connected to a flow collection chamber.
• Dedicated access ports are reserved at the radial arteries and femoral arteries for interventional device insertion. Through customized connectors, each section of the model can be freely connected, detached, and replaced. In addition, all components can be customized free of charge to meet your diverse training and testing requirements.

Product Usage:

• Designed for transradial and transfemoral neuro-interventional procedure training.
• Applicable for targeted drug delivery simulation and training.
• Suitable for the development, testing, and validation of neuro-interventional devices, including catheters, guidewires, microcatheters, micro guidewires, and other related devices.
• Applicable for demonstration, training, and marketing of neuro-interventional devices.

Customization Options:

• Intracranial Section: Customizable with different numbers and locations of aneurysms, embolisms, stenoses, tortuous carotid arteries, and other vascular pathologies.
• Thoracic Aorta: Configurable with Type I, Type II, Type III, or variant aortic arch anatomy. The left and right coronary arteries can also be incorporated, with customizable pathological conditions including coronary artery stenosis, bifurcation lesions, embolism, calcification, chronic total occlusion (CTO), and other common lesions.
• Radial Artery: Available in both standard and three-dimensional anatomical configurations.
• Abdominal Aorta: Optional branches include the hepatic, gallbladder, splenic, gastric, renal, pancreatic, superior and inferior mesenteric, and intercostal arteries. The vascular architecture can be simplified or made more complex according to specific requirements.
• Lower Extremity Arteries: Common lesions such as chronic total occlusion (CTO), calcification, and embolism can be incorporated upon request.
• Patient-Specific Customization: Models can be customized based on customer-provided CT, CAD, STL, STEP, and other compatible digital data files.

Specifications

• Model number: FAX002D
• Material: Silicone
• Lead time: 7-15 days
• Payment term: T/T
• Shipping port: Ningbo, China
• Available shipping carriers: FedEx, DHL, EMS, UPS, TNT
• Custom design and technical solution service available
• Internal product ID (site): 306948077
