Whole body vascular model FAX001D

circulatory systemarteryvein

Product Description:

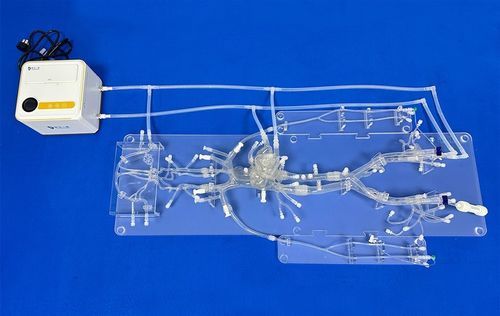

This arteriovenous vascular model includes neurovascular structures, the aortic arch, four-chambered heart (with mitral, tricuspid, and aortic valves)abdominal aorta, femoral artery, jugular vein, superior vena cava, inferior vena cava, femoral vein and etc. Intracranial arteries include the basilar artery, vertebral artery, middle cerebral artery, anterior cerebral artery, and internal carotid artery. The intracranial part contains 5 aneurysm lesions and 1 stenosis lesion, the left and right carotid arteries features with siphon bends, two 360° and 180° bends. The thoracic part contains healthy left and right coronary arteries, which the left anterior descending artery can be replaced with a stenosis lesion. The entire model is made of transparent silicone and fixed and supported by an acrylic base plate. Through customized transparent connectors, the intracranial, thoracic and abdominal sections of this model can be detectable and replaceable, additionally, those sections can be customized according to your diverse needs.

Application
1.Applicable for aneurysm embolization, AVM treatment, coronary angiography, and cerebral angiography.
2. Applicable the development, testing, and validation of neuro, coronary, and venous devices; also for training, demonstration, and marketing.
3. Suitable for quantitative analysis to blood perfusion(CTA,DSA,MRA,OOT,PIV and doppler sonography).

Customization Service Options:
1. Intracranial part: We can customize different numbers, sizes and locations of aneurysms, stenosis, arteriovenous fistula, embolism and other lesions based on your requirement.
2. Aortic arch: It can be replaced with Type I arch, Type II arch, Type III arch, and anomalous arch.
3. Carotid arteries: We can customize different numbers, sizes and locations of aneurysms, stenosis, turns and other lesions.
4. Thoracic part: We can customize different stenosis, bifurcation and CTO lesions.
5.Abdominal part: The structure can be complexified based on your needs.
6.We can customize model based on the data files provided in formats such as CT, CAD, STL, STP, STEP, etc.
