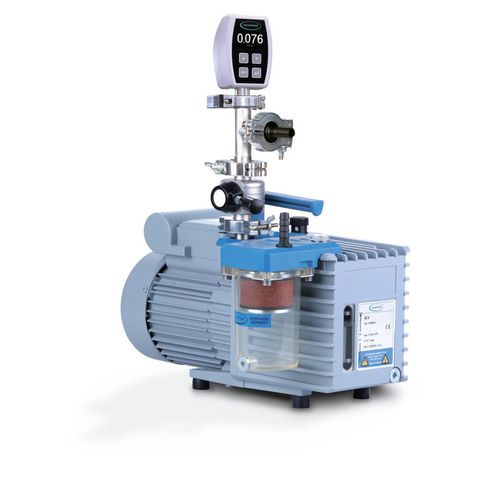

Laboratory vacuum pump RZ 6

rotary vanelubricated

Overview

• High pumping speed even close to ultimate vacuum
• High water vapor tolerance with effective gas ballast; good ultimate vacuum with gas ballast
• Vacuum-tight on shutdown; no external anti-suckback valve required
• Large oil volume for longer intervals between oil changes
• Easy maintenance due to telescopic design

Product description
These two-stage rotary vane pumps combine compact dimensions and low weight with a pumping performance suitable for numerous laboratory and process applications requiring low ultimate vacuum at medium to elevated gas throughput. The RZ 6 is available as complete packages including oil mist filter FO, valve VS 16 and the VACUU·VIEW extended vacuum controller, delivered filled with oil and ready for use.

Technical data and graphs (selected rows)
Max. pumping speed 50 Hz: 5.7 m3/h
Max. pumping speed 60 Hz: 4.0 cfm
Ultimate partial vacuum (abs.) without gas ballast: 4 x 10^-4 mbar
Ultimate vacuum: 2 x 10^-3 mbar / 1.5 x 10^-3 torr
Ultimate vacuum with gas ballast: 1 x 10^-2 mbar / 0.75 x 10^-2 torr
Number of stages: 2
Vacuum controller: VACUU·VIEW extended
Water vapor tolerance with gas ballast: 40 mbar
Lower ambient temperature (operation): 12 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Oil capacity (B-Oil) min.: 0.34 l
Oil capacity (B-Oil) max.: 0.73 l
Inlet connection: Small flange KF DN 16 / hose nozzle DN 10 mm
Outlet connection: Hose nozzle DN 8-10 mm
Rated motor power: 0.18 kW
Rated motor speed at 50/60 Hz: 1500/1800 min-1
Protection class IEC 60529: IP 40
Dimension L in mm: 420 mm
Dimension B in mm: 230 mm
Dimension H in mm: 240 mm
Weight: 17.8 kg
Noise (sound pressure level) in dBA at 50 Hz: 50 dBA
Items supplied: Pump filled with oil and completely mounted, ready for use; manual; oil mist filter FO; valve VS 16; VACUU·VIEW extended.

Characteristics / technical specifications

• Model: RZ 6 (two-stage rotary vane pump)
• Pumping speed (50 Hz): 5.7 m³/h
• Pumping speed (60 Hz): 4.0 cfm
• Ultimate vacuum (without gas ballast): 2 x 10^-3 mbar
• Ultimate partial vacuum (abs.) without gas ballast: 4 x 10^-4 mbar
• Ultimate vacuum with gas ballast: 1 x 10^-2 mbar
• Stages: 2
• Water vapor tolerance (with gas ballast): 40 mbar
• Motor power: 0.18 kW
• Rated motor speed: 1500/1800 min^-1 (50/60 Hz)
• Inlet: KF DN 16 / hose nozzle DN 10 mm
• Outlet: Hose nozzle DN 8–10 mm
• Oil capacity: 0.34–0.73 l
• Protection class: IP 40
• Dimensions (L×B×H): 420 × 230 × 240 mm
• Weight: 17.8 kg
• Sound pressure level: 50 dBA (50 Hz)
• Rated mains voltage/frequency: 230 V / 50–60 Hz
• Items supplied: Pump filled with oil and assembled; manual; oil mist filter FO; valve VS 16; VACUU·VIEW extended
