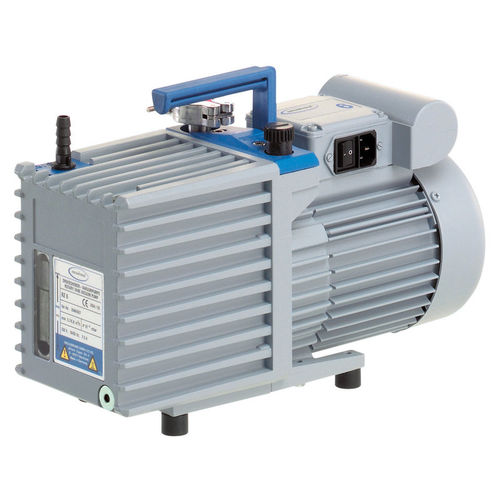

Laboratory vacuum pump RE 6

rotary vanelubricated

Overview

• High pumping speed even close to ultimate vacuum
• High water vapor tolerance with effective gas ballast; good ultimate vacuum even with gas ballast
• Vacuum-tight at switch-off; no external anti-suckback valve required
• Large oil capacity: long intervals between oil changes
• Easy maintenance due to telescopic design

Product details (short)

• Ultimate vacuum (no gas ballast): 1 x 10^-1 mbar
• Ultimate vacuum (with gas ballast): 6 x 10^-1 mbar
• Max. pumping speed (50 Hz): 5.7 m³/h

Description
These powerful rotary vane pumps combine an unusually compact design and low weight for this capacity. They are suitable for laboratory and process applications that require a low ultimate vacuum with medium to elevated gas throughput. The pumps are delivered oil filled and completely mounted, ready for use, with a manual.

Technical data and graphs (excerpt)
Max. pumping speed 50 Hz: 5.7 m3/h
Max. pumping speed 60 Hz: 4.0 cfm
Ultimate partial vacuum (abs.) without gas ballast: 1 x 10^-1 mbar
Ultimate vacuum: 1 x 10^-1 mbar / 0.75 x 10^-1 torr
Ultimate vacuum with gas ballast: 6 x 10^-1 mbar / 4.5 x 10^-1 torr
Number of stages: 1
Water vapor tolerance with gas ballast: 40 mbar
Ambient temperature (operation): 12 °C – 40 °C
Ambient temperature (storage): -10 °C – 60 °C
Max. back pressure (abs.): 1.1 bar
Oil capacity (B-Oil): 0.36 – 0.93 l
Inlet connection: small flange KF DN 16
Outlet connection: hose nozzle DN 8–10 mm
Rated motor power: 0.18 kW
Rated motor speed (50/60 Hz): 1500 / 1800 min^-1
Protection class: IP 40
Dimensions (L×B×H): 420 × 156 × 240 mm
Weight: 15.7 kg
Noise level (50 Hz): 50 dBA
Supply: pump oil filled and completely mounted, with manual.

Characteristics / technical specifications

• Model: RE 6
• Type: rotary vane pump, 1-stage
• Pumping speed (50 Hz): 5.7 m³/h
• Pumping speed (60 Hz): 4.0 cfm
• Ultimate vacuum (no gas ballast): 1 x 10^-1 mbar
• Ultimate vacuum (with gas ballast): 6 x 10^-1 mbar
• Water vapor tolerance (with gas ballast): 40 mbar
• Oil capacity: 0.36 – 0.93 l
• Connections: inlet KF DN16; outlet hose nozzle DN 8–10 mm
• Rated power: 0.18 kW; speed: 1500/1800 min^-1
• Protection class: IP 40
• Dimensions (L×B×H): 420 × 156 × 240 mm
• Weight: 15.7 kg
• Noise level (50 Hz): 50 dBA
• Supply condition: oil filled, mounted, with manual
• Mains: 230 V, 50–60 Hz
