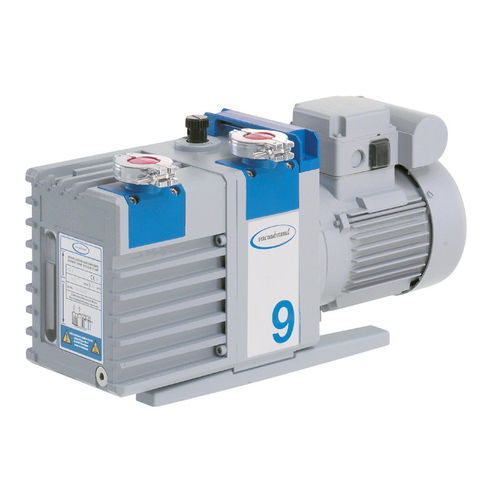

Laboratory vacuum pump RZ 9

rotary vanelubricatedmulti-stage

Overview
RZ 9 is a two-stage rotary vane pump designed for rapid evacuation of vessels and for applications requiring high gas throughput. The pump is supplied ready for use, filled with pump oil and accompanied by a manual.

Key features

• Very high pumping speed even at pressures approaching the ultimate vacuum
• High water vapor tolerance thanks to an effective gas ballast; very good ultimate vacuum even with gas ballast open
• Vacuum-tight at switch-off; external anti-suckback valve not required
• Large oil capacity enabling extended intervals between oil changes
• Easy maintenance due to telescopic design

Product details
Ultimate vacuum: 2 x 10^-3 mbar
Ultimate vacuum with gas ballast: 1 x 10^-2 mbar
Max. pumping speed (50 Hz): 8.9 m3/h
Max. pumping speed (60 Hz): 6.0 cfm
Rated motor power: 0.30 kW
Rated motor speed (50/60 Hz): 1500 / 1800 min^-1
Dimensions (L x W x H): 503 x 156 x 240 mm
Weight: 24.8 kg

Technical data (selected)

• Ultimate partial vacuum without gas ballast: 4 x 10^-4 mbar
• Number of stages: 2
• Water vapor tolerance with gas ballast: 40 mbar
• Operating ambient temperature: 15–40 °C
• Storage temperature: -10–60 °C
• Max. back pressure (abs.): 1.1 bar
• Oil capacity (B-Oil) min/max: 0.45–0.85 l
• Inlet / Outlet: KF DN 25 small flange
• Protection class: IP 40
• Noise level (50 Hz): 52 dBA

Items supplied
Pump oil filled and completely mounted, ready for use, with manual.

Applications

• Laboratory vacuum systems, R&D and pilot processes
• Industrial processes requiring medium vacuum and vapor tolerance
• Vacuum drying, degassing and general evacuation of vessels
