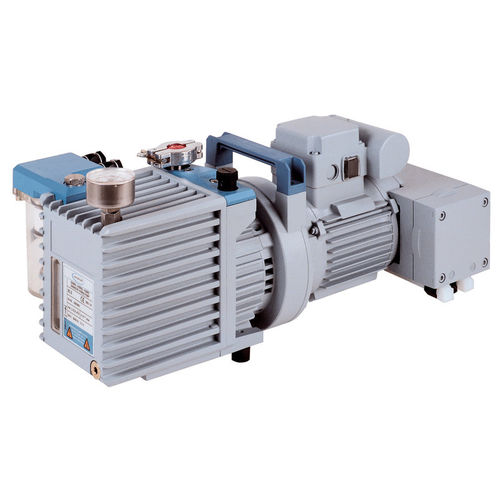

Laboratory vacuum pump RC 6

hybridlubricatedmulti-stage

Overview

• Reduced internal corrosion when handling corrosive vapors
• Oil changes typically reduced by 90% or more compared with rotary vane pumps alone
• Most economical solution: in many applications a cold trap is no longer required
• Easy maintenance thanks to telescopic design

Product description
The RC 6 Chemistry-HYBRID pump combines a two-stage rotary vane vacuum pump with a two-stage chemistry diaphragm pump to optimize corrosion resistance. The diaphragm pump maintains the oil reservoir under vacuum to keep solvent vapor partial pressures below their condensation points and to substantially reduce oxygen and corrosive gas concentrations. As a result, the RC 6 offers significantly higher solvent vapor handling capability and better resistance to aggressive gases than conventional rotary vane pumps.

Technical data (selected key values)
Max. pumping speed 50 Hz: 5.9 m3/h
Max. pumping speed 60 Hz: 4.1 cfm
Ultimate partial vacuum (abs.) without gas ballast: 4 x 10^-4 mbar
Ultimate vacuum: 2 x 10^-3 mbar / 1.5 x 10^-3 torr
Ultimate vacuum with gas ballast: 1 x 10^-2 mbar / 0.75 x 10^-2 torr
Number of heads: 2
Number of stages: 2 + 2
Water vapor tolerance with gas ballast: >> 40 mbar
Operating ambient temperature: 12 °C to 40 °C
Storage ambient temperature: -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Oil capacity (B-Oil): 0.34–0.50 l
Inlet connection: KF DN 16 (small flange)
Outlet connection: Hose nozzle DN 8–10 mm
Rated motor power: 0.3 kW
Rated motor speed (50/60 Hz): 1500/1800 min^-1
Protection class: IP 40 (IEC 60529)
Dimensions L x W x H: 526 x 302 x 226 mm
Weight: 25 kg
Noise level (50 Hz): 50 dBA
Items supplied: pump mounted, oil bottle 0.5 l enclosed, manual
Rated mains voltage / frequency: 230 V, 50-60 Hz

Applications

• Vacuum concentrators
• Schlenk line work
• Fine vacuum distillation
• Lyophilisation (freeze drying)
