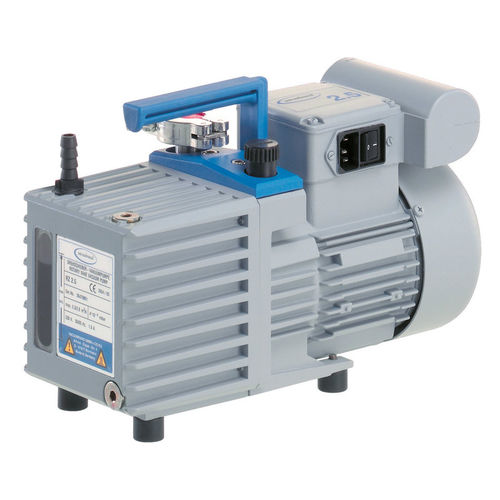

Laboratory vacuum pump RE 2.5

rotary vanelubricatedlow flow capacity

Overview

• High pumping speed maintained close to ultimate vacuum
• Good ultimate vacuum even with gas ballast
• Vacuum-tight at switch-off — external anti-suckback valve not required
• Large oil capacity for extended oil-change intervals
• Easy maintenance thanks to telescopic design

Short description
The single-stage RE 2.5 pumps are high-performance rotary vane pumps with an extra-compact design and low weight. They are suited to laboratory and process applications that require a low ultimate vacuum at medium gas throughput and where space and weight are constrained.

Technical data and graphs
Max. pumping speed 50 Hz: 2.3 m3/h
Max. pumping speed 60 Hz: 1.65 cfm
Ultimate partial vacuum (abs.) without gas ballast: 3 x 10-1 mbar
Ultimate vacuum: 3 x 10-1 mbar / 2.3 x 10-1 torr
Ultimate vacuum with gas ballast: 8 x 10-1 mbar / 6 x 10-1 torr
Number of stages: 1
Rated motor power: 0.1 kW
Rated speed (50/60 Hz): 1500 / 1800 min-1
Inlet connection: KF DN 16 (small flange)
Outlet connection: Hose nozzle DN 8-10 mm
Oil capacity: 0.40–1.00 l
Max. back pressure (abs.): 1.1 bar
Operating ambient temperature: 12 °C to 40 °C
Storage temperature: -10 °C to 60 °C
Protection class (IEC 60529): IP 40
Dimensions (L x B x H): 390 x 156 x 240 mm
Weight: 12.8 kg
Noise (sound pressure) at 50 Hz: 48 dBA
Mains voltage: 230 V, 50-60 Hz

Key features / Technical specifications

• Model: RE 2.5
• Type: single-stage rotary vane pump
• Pumping speed (50 Hz): 2.3 m³/h
• Ultimate vacuum (without gas ballast): 3 x 10-1 mbar
• Ultimate vacuum (with gas ballast): 8 x 10-1 mbar
• Inlet: KF DN 16 (small flange)
• Outlet: Hose nozzle DN 8-10 mm
• Oil capacity: 0.40–1.00 l
• Motor power: 0.1 kW
• Rated speed: 1500 / 1800 min⁻¹ (50 / 60 Hz)
• Protection class: IP 40
• Dimensions (L x B x H): 390 x 156 x 240 mm
• Weight: 12.8 kg
• Noise level: 48 dBA (50 Hz)
• Max. back pressure (abs.): 1.1 bar

Items supplied

• Pump filled with oil and completely mounted, ready for use, with manual

Applications

• Laboratory vacuum tasks (freeze-drying, mid-vacuum distillation)
• Small-volume evacuation and gas evacuation for chambers and instruments
• Process applications requiring moderate gas throughput and low ultimate vacuum

Maintenance
Telescopic design simplifies access to internal components. Observe recommended oil type and fill levels; oil-change intervals are extended due to the large oil capacity but depend on operating conditions and gas load.
