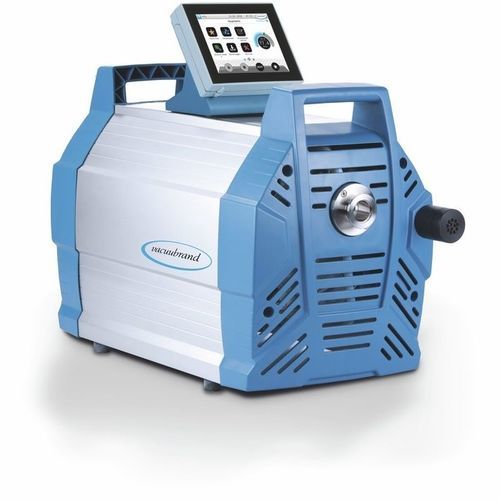

Double-diaphragm vacuum pump ME 16 NT VARIO select

diaphragmoil-free

Overview

• Contamination-free pumping and evacuation of non-aggressive gases
• High flow rate even near ultimate vacuum
• Low noise and very low vibration
• Fabric-reinforced FKM double diaphragm with extended service life
• Included VACUU·SELECT vacuum controller with external gauge head

Key product data

• Ultimate vacuum: 70 mbar
• Max. pumping speed (50 Hz): 19 m³/h

Description
Oil-free, one-stage eight-cylinder diaphragm pump designed for evacuation and pumping of non-aggressive gases. Components in contact with the pumped medium are aluminium and selected plastics suitable for a wide range of industrial applications. The fabric-reinforced double diaphragm made of FKM provides extended operating life, which increases further when the motor is speed-controlled. The ME 16 NT VARIO select combines high pumping speed, compact footprint and smooth, easy-to-clean surfaces. The unit is supplied mounted and ready for use, including silencer and manual, and is controlled via the VACUU·SELECT external gauge head.

Technical data and graphs
Max. pumping speed 50 Hz: 19 m³/h
Max. pumping speed 60 Hz: 11.2 cfm
Ultimate vacuum: 70 mbar / 53 torr
Number of heads: 8
Number of stages: 1
Vacuum controller: VACUU·SELECT (external gauge head)
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: small flange KF DN 25
Outlet connection: G1/2"
Rated motor power: 0.53 kW
Protection class IEC 60529: IP 40
Dimensions (L × W × H): 552 × 260 × 450 mm
Weight: 31.6 kg
Noise (sound pressure level) at 50 Hz: 54 dBA
Rated mains voltage range: 120 V
Mains frequency: 50-60 Hz
Interface: Ethernet (RJ45) Modbus TCP / USB (Type A) data transfer & software update / RS-232 (adapter required)

Specifications

• Model: ME 16 NT VARIO select
• Technology: oil-free diaphragm pump, one-stage, eight-cylinder
• Max. pumping speed (50 Hz): 19 m³/h
• Max. pumping speed (60 Hz): 11.2 cfm
• Ultimate vacuum: 70 mbar / 53 torr
• Diaphragm material: fabric-reinforced double diaphragm, FKM
• Materials in contact with media: aluminium and selected plastics (non-corrosive gases)
• Rated motor power: 0.53 kW
• Rated mains voltage range: 120 V
• Mains frequency: 50-60 Hz
• Protection class: IP 40
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: KF DN 25 (small flange)
• Outlet connection: G1/2"
• Dimensions (L × W × H): 552 × 260 × 450 mm
• Weight: 31.6 kg
• Noise level (50 Hz): 54 dBA
• Items supplied: pump mounted and ready for use, silencer, manual
• Interfaces: Ethernet (RJ45) Modbus TCP, USB (Type A), RS-232 (adapter required)
