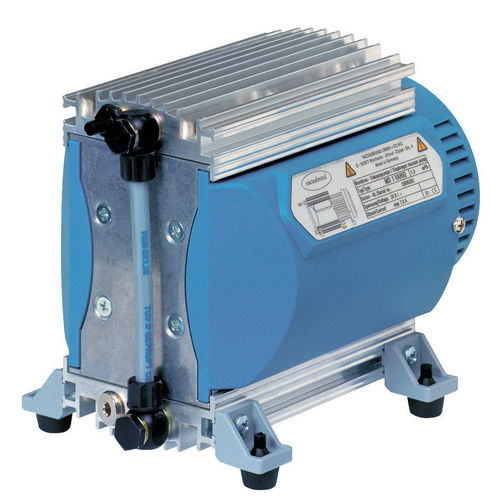

Suction pump MD 1 VARIO-SP

laboratoryelectricdiaphragm

Overview

• Contamination-free pumping and evacuation
• High pumping speed even near ultimate vacuum
• Variable speed (VARIO®-SP): fast pump-down at high motor speed and reduced speeds to maintain vacuum
• Compact design with low noise and very low vibration, especially at reduced speed
• Customized versions and integration options available

Product description
The three-stage diaphragm pump MD 1 VARIO-SP with VARIO®-SP variable-speed drive delivers higher effective pumping speed and improved ultimate vacuum compared with equivalent fixed-speed models. The maintenance-free brushless 24 V DC motor enables easy equipment integration and operation independent of mains voltage. The pump offers low acoustic emission, minimal vibration and extended diaphragm service life, making it suitable for compact installations and inline integration.

Technical data
Max. pumping speed 50 Hz: 1.8 m3/h
Max. pumping speed 60 Hz: 1.06 cfm
Ultimate vacuum: 1 mbar / 0.75 torr
Number of heads: 4
Number of stages: 3
Operating temperature range: 10 °C to 40 °C
Storage temperature range: -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Hose nozzle DN 6 mm
Outlet connection: Silencer / G1/8"
Rated motor power: 0.064 kW
Speed range VARIO: 200 – 2400 min-1
Protection class: IP 20 (IEC 60529)
Dimensions (L × W × H): 223 × 143 × 163 mm
Weight: 4.1 kg
Noise (50 Hz): 37 dBA
ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
NRTL: certified
Rated voltage: 24 V DC

Specifications

• Model: MD 1 VARIO-SP
• Technology: 3-stage oil-free diaphragm pump (VARIO®-SP)
• Drive: Brushless 24 V DC motor (maintenance-free)
• Pumping speed (50 Hz): 1.8 m3/h
• Pumping speed (60 Hz): 1.06 cfm
• Ultimate vacuum: 1 mbar (0.75 torr)
• Heads / Stages: 4 heads, 3 stages
• Rated motor power: 0.064 kW
• Speed range: 200 – 2400 min-1
• Inlet / Outlet: Hose nozzle DN 6 mm / Silencer G1/8"
• Max. back pressure: 1.1 bar (abs.)
• Operating temp.: 10 °C to 40 °C
• Storage temp.: -10 °C to 60 °C
• Protection class: IP 20
• Dimensions (L × W × H): 223 × 143 × 163 mm
• Weight: 4.1 kg
• Noise level (50 Hz): 37 dBA
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• NRTL: Yes
• Items supplied: Pump assembled and ready for use, 2 m cable without plug, manual
• Brand: VACUUBRAND
