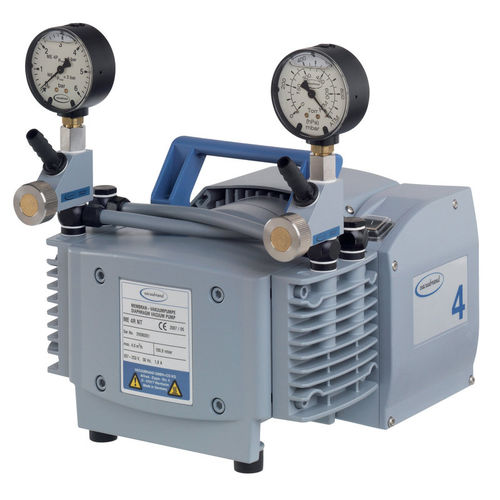

Laboratory vacuum pump ME 4R NT

diaphragmoil-free

Overview

• Contamination-free pumping, evacuation and compression
• High flow rate even near ultimate vacuum
• Adjustable inlet vacuum level and outlet pressure via regulator valves
• Very low vibration and oil-free operation
• Long diaphragm life and maintenance-free drive for low lifetime costs

Product description
This single-stage diaphragm pump operates as both a vacuum generator and a compressor. All parts in contact with the pumped media are aluminium and selected plastics; diaphragms and valves are PTFE. The materials make the ME 4R NT suitable for a wide range of applications with non-corrosive gases. Inlet and outlet are fitted with regulator valves allowing the user to limit or adjust vacuum and compression pressure. Inlet vacuum level and outlet pressure are shown on manometers.

Technical data and graphs
Max. pumping speed 50 Hz: 3.8 m3/h
Max. pumping speed 60 Hz: 2.5 cfm
Ultimate vacuum: 100 mbar / 75 torr
Number of heads: 2
Number of stages: 1
Vacuum controller: Manometers
Operating ambient temperature: 10 °C to 40 °C
Storage temperature: -10 °C to 60 °C
Max. back pressure (abs.): 4 bar
Inlet / outlet connection: Hose nozzle DN 8-10 mm
Rated motor power: 0.18 kW
Rated speed (50/60 Hz): 1500 / 1800 min-1
Protection class: IP 40
Dimensions (L×W×H): 254 × 268 × 290 mm
Weight: 11.5 kg
Noise level (50 Hz): 45 dBA
Rated mains voltage: 230 V, 50-60 Hz
Items supplied: Pump completely mounted, ready for use, with manual.

Technical specifications

• Model: ME 4R NT
• Function: Single-stage diaphragm pump (vacuum generator and compressor)
• Materials in contact with media: Aluminium and selected plastics; PTFE diaphragms and valves
• Adjustable inlet vacuum and outlet pressure via regulator valves
• Indication: Inlet vacuum and outlet pressure indicated by manometers
• Max. pumping speed (50 Hz): 3.8 m3/h
• Max. pumping speed (60 Hz): 2.5 cfm
• Ultimate vacuum: 100 mbar / 75 torr
• Heads / stages: 2 heads / 1 stage
• Rated motor power: 0.18 kW; Rated speed: 1500 / 1800 min-1
• Connections: Hose nozzle DN 8-10 mm (inlet & outlet)
• Max. back pressure (abs.): 4 bar
• Protection class: IP 40
• Dimensions (L×W×H): 254 × 268 × 290 mm
• Weight: 11.5 kg
• Noise level (50 Hz): 45 dBA
• Operating ambient temperature: 10 °C to 40 °C; Storage: -10 °C to 60 °C
• Supply voltage: 230 V, 50-60 Hz
• Items supplied: Pump completely mounted, ready for use, with manual
