Laboratory vacuum pump ME 4 NT
diaphragmdouble-diaphragmoil-free

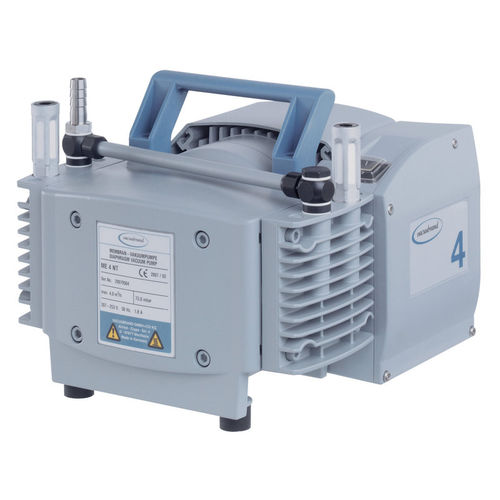

Laboratory vacuum pump - ME 4 NT - Vacuubrand - diaphragm / double-diaphragm / oil-free
Laboratory vacuum pump - ME 4 NT - Vacuubrand - diaphragm / double-diaphragm / oil-free
Add to favorites
Compare this product
Go to the Vacuubrand website for more information

Characteristics

Applications
laboratory
Technology
diaphragm, double-diaphragm
Options
oil-free
Flow

2.6 m³/h, 4 m³/h
(0.07 ft³/h, 141.26 ft³/h)

Power

0.18 kW
(0.24 hp)

Pressure

0.07 bar, 2 bar
(1.0153 psi, 29.0075 psi)

Inlet fitting size

8 mm, 10 mm
(0.3 in, 0.4 in)

Outlet fitting size

13.2 mm
(0.5 in)

Weight

11 kg
(24.3 lb)

Length

24.5 cm
(9.6 in)

Width

23.9 cm
(9.4 in)

Height

19.8 cm
(7.8 in)

Description

Overview
  • Oil-free pumping and evacuation for contamination-sensitive applications
  • High pumping speed up to 4 m³/h (50 Hz), effective near ultimate vacuum
  • Low noise operation (45 dBA at 50 Hz)
  • ME 4 NT: reduced vibration and improved pumping performance
  • FKM fabric-reinforced double diaphragm for extended service life; maintenance-free drive


Product details
  • Ultimate vacuum: 70 mbar (≈52 torr)
  • Max. pumping speed (50 Hz): 4 m³/h
  • Heads: 2 • Stages: 1


Description
  • Diaphragm pumps provide continuous, oil-free evacuation and pumping of non-corrosive gases. All wetted parts are aluminium and selected plastics, enabling broad industrial applications. The single-stage design balances high pumping speed with an ultimate vacuum down to 70 mbar. The highly flexible FKM fabric-reinforced double diaphragm increases lifetime. The NT series delivers improved performance and lower operating costs.


Technical data and graphs
  • Max. pumping speed 50 Hz: 4 m³/h
  • Max. pumping speed 60 Hz: 2.6 cfm
  • Ultimate vacuum: 70 mbar / 52 torr
  • Number of heads: 2 • Number of stages: 1
  • Ambient temperature (operation): 10 °C to 40 °C • Storage: -10 °C to 60 °C
  • Max. back pressure (abs.): 2 bar
  • Inlet connection: Hose nozzle DN 8-10 mm • Outlet connection: 2 x G1/4"
  • Rated motor power: 0.18 kW • Rated speed 50/60 Hz: 1500/1800 min⁻¹
  • Protection class: IP 40
  • Dimensions (L x W x H): 245 x 239 x 198 mm • Weight: 11.0 kg
  • Noise (sound pressure) at 50 Hz: 45 dBA
  • ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only) • NRTL: Yes


Items supplied
  • Pump fully assembled, ready for use
  • Silencer
  • Hose nozzle
  • Manual


Downloads (available)
  • Technical data sheet (EN)
  • Manual vacuum pump (EN)
  • Safety information for vacuum equipment (multilingual)


Characteristics / specifications
  • Model: ME 4 NT
  • Type: Oil-free, single-stage diaphragm pump
  • Pumping speed (50 Hz): 4 m³/h • (60 Hz): 2.6 cfm
  • Ultimate vacuum: 70 mbar (≈52 torr)
  • Motor power: 0.18 kW • Mains voltage: 230 V • Frequency: 50-60 Hz
  • Inlet: Hose nozzle DN 8-10 mm • Outlet: 2 x G1/4"
  • Protection class: IP 40
  • Dimensions (L x W x H): 245 x 239 x 198 mm • Weight: 11.0 kg
