Temperature control unit vPad PRO

vacuum pressurehumidityfor dental units

Product information

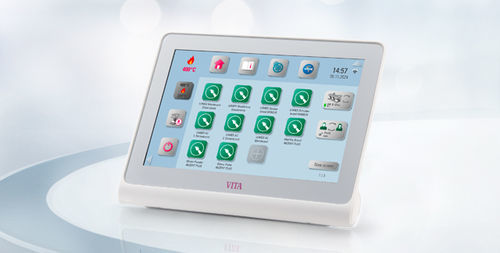

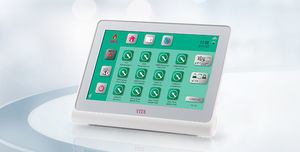

The VITA vPad PRO is a control unit for firing and sintering furnaces. It provides an intuitive navigation system, planned program start and flexible connection options to support complex laboratory workflows while maintaining straightforward operation.

Highlights

• Flexible control: manage up to four firing units with a single VITA vPad PRO to optimise laboratory throughput.
• Intuitive operation: menu-guided interface for fast access without a long familiarisation period.
• Operational convenience: configurable controls and desktop layouts tailored to everyday laboratory tasks.

Technical functions

• Control of up to four firing units from one device.
• Customisable desktops for a personalised and efficient working environment.
• Timer function for delayed or scheduled program start to match workflow requirements.
• Wireless connection to compatible furnaces for increased flexibility.
• Integrated web browser for direct access to online resources.
• Online firing data transfer for rapid support and process optimisation.
• WLAN connectivity for integration into digital infrastructures.
• Comprehensive monitoring and service features: automatic temperature adjustment before program start; temperature probe and vacuum monitoring; rapid cooling; night mode; power outage protection; operating hours display for device and heating muffle; automatic cleaning.
• Software updates and data transfer of user profiles, firing and device data to other components or a PC.

Technical data
Width: 260 mm
Depth: 150 mm
Height: 200 mm
Weight: 1.6 kg
Casing: plastic
Protection class: Class 1

Operating temperature: 10 °C to 35 °C
Operating humidity: max. 80% RH
Application area: approved for indoor operation only

Accessories (at an additional cost)

• Switchbox (required to operate 2 or more VITA firing units with a VITA vPad PRO) – referenced as Switchbox (Part No. D65000).
• Alternative: certain furnaces (e.g. VITA VACUMAT 6100 M and VITA SMART.FIRE ADVANCED) can be connected wirelessly in the multi-furnace control system, making a Switchbox unnecessary in those configurations.

Technical specifications

• Model name: VITA vPad PRO (control unit for firing and sintering furnaces).
• Maximum controlled furnaces: up to 4 (simultaneous control when configured accordingly).
• Dimensions: 260 mm (W) × 150 mm (D) × 200 mm (H).
• Weight: 1.6 kg.
• Enclosure material: plastic.
• Protection class: Class 1.
• Operating temperature range: 10 °C to 35 °C.
• Maximum relative humidity: 80% RH.
• Intended use: indoor operation only.
• Connectivity: WLAN, wireless furnace connection, integrated web browser, online firing data transfer.
• Monitoring & service features: temperature probe monitoring, vacuum monitoring, rapid cooling, night mode, power outage protection, operating hours display, automatic cleaning, software updates and profile/data transfer.
• Optional accessory: Switchbox (Part No. D65000) for multi-furnace operation (unless a wireless multi-furnace setup is used with compatible units).
