Temperature control unit vPad LITE

vacuum pressurehumidityfor dental units

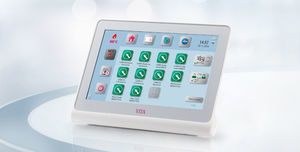

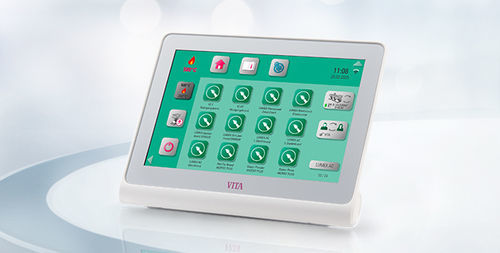

Product information The VITA vPad LITE is a control panel for VITA firing and sintering furnaces, providing intuitive navigation and clear menu guidance. Designed for standardized dental laboratory workflows and indoor use.

Key benefits

• Intuitive operation: self-explanatory menu guidance for quick access without a familiarization period.
• Efficient control: automated sequences and centralized management reduce operator time and support process consistency.
• Convenient workflow: fast, responsive interface for precise daily operation and clear navigation.

Technical functions

• Individually configurable desktops for a personalized working environment.
• Online firing data transfer to enable rapid support and process optimization.
• WLAN connectivity for wireless integration into the laboratory IT infrastructure.
• Monitoring and service functions: automatic temperature adjustment, temperature probe, vacuum monitoring, rapid cooling, night mode, power outage protection, operating hours display for device and muffle, automatic cleaning.
• Software updates and transfer of user profiles, firing and device data to other components or to a PC.

Technical data Width: 260 mm
Depth: 150 mm
Height: 200 mm
Weight: 1.6 kg
Casing: plastic
Protection class: Class 1
Operating temperature: 10 °C to 35 °C
Maximum humidity: 80% RH
Application area: approved for indoor operation only

Technical specifications

• Model: VITA vPad LITE
• Dimensions (W x D x H): 260 mm x 150 mm x 200 mm
• Weight: 1.6 kg
• Casing material: plastic
• Protection class: Class 1
• Operating temperature range: 10 °C to 35 °C
• Maximum operating humidity: 80% RH
• Intended use: indoor operation only (laboratory applications)
• Connectivity: WLAN for wireless integration
• Data management: online firing data transfer, storage of firing data, software updates and profile/data transfer to PC or other components
• Monitoring & service features: temperature probe, vacuum monitoring, rapid cooling, automatic temperature adjustment, automatic cleaning, operating hours display, night mode, power outage protection
