Heating furnace VACUMAT® 6000 MP

dentalmufflevacuum

Product overview

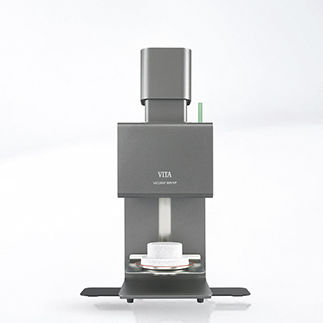

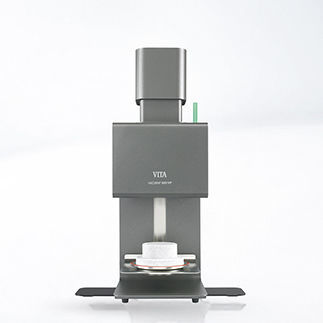

The VITA VACUMAT® 6000 MP is a compact combi press and firing unit engineered for safe, repeatable dental pressing and firing. It integrates the firing programs and functions of the VITA VACUMAT® 6000 M and supports commercially available press ceramics and a wide range of muffle systems. Automatic pellet detection via VITA PressControl reduces the risk of incomplete loads and press faults.

Key features

• Durable quartz firing muffle (Made in Germany) and proven electronics for consistent results
• Automatic condensation prevention in the firing chamber (VITA AntiCon)
• Automatic temperature calibration ±1 °C at program start (VITA AutoAdjust)
• Automatic cleaning routine (VITA SpecialClean)
• VITA CPress press technology for reliable ceramic pressing
• Automatic press path monitoring and pellet recognition (VITA PressControl)
• Controlled fast cooling and energy‑saving night mode
• Process data archiving and management via VITA Firing Data System (FDS)
• Control up to four furnaces with one VITA vPad
• Support for VITA MultiPump to supply up to four furnaces from a single vacuum pump (patented)

Technical functions

• Service and monitoring programs: automatic temperature adjustment, temperature and vacuum monitoring, firing muffle operating hours counter
• Power failure protection
• Adjustable vacuum settings: pre‑vacuum and main vacuum
• Lift monitoring with adjustable speed and freely set lift positions for pre‑drying and slow cooling
• Fast cooling to standby temperature

Article / Accessories (selected items)

• VITA VACUMAT® 6000 MP painted (230 V) — Prod. no.: DV6000MP220 — Standard accessories: firing base; universal press firing base; universal press insert disc; mains cable; VITA vPad control cable; 2 packs firing bases G; furnace tweezer (25 cm); LED plug‑in status indicator; pressure regulator for vacuum pump; pressure/vacuum tube; operating manual.
• VITA Silver Test Set B230 — temperature test set for ceramic furnaces: 6 ceramic sockets and 3 silver rods (70 mm, Ø 1.5 mm).

Notes
The VITA vPad control unit is required to operate the furnace. For shared control of multiple furnaces with a single vPad (from the 2nd furnace) a switchbox is required. VITA MultiPump enables vacuum supply for multiple furnaces from one pump.

Technical specifications

• Model: VITA VACUMAT® 6000 MP
• Type: combined press and firing unit for dental ceramics
• Firing chamber diameter: 90 mm
• Firing chamber height: 55 mm
• Maximum firing temperature: 1200 °C
• External dimensions (W x D x H): 230 x 370 x 630 mm
• Weight: 19 kg
• Enclosure: painted anthracite finish
• Supply voltage: 100/110 V 50/60 Hz or 230 V 50/60 Hz
• Power consumption: max. 1.5 kW
• Protection class: 1
• Optional accessories: VITA vPad LITE / PRO, switchbox, vacuum pump / Vacuum Pump II, VITA MultiPump
