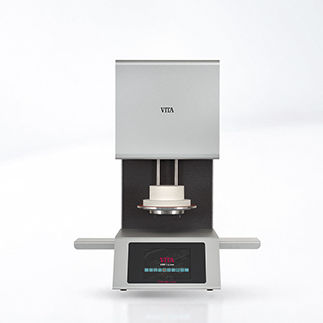

Sintering furnace V60 i-Line® PLUS

for dental laboratoriesmuffleceramic

Product overview The VITA V60 i-Line® PLUS is a compact dental sintering furnace designed for consistent ceramic firing results and straightforward laboratory operation. It combines a durable quartz muffle with an intuitive 7-inch touch interface for efficient workflows in dental labs.

Key features

• Precise temperature control: ±2 °C accuracy for reproducible sintering cycles.
• Compact and productive: space-saving footprint with robust metal housing for continuous lab use.
• User-friendly interface: 7-inch touch display with intuitive software for fast program selection and operation.
• Durable firing chamber: VITA quartz muffle and high-quality insulation for long-term stable results.
• Convenient handling: two side firing-object storage trays integrated into the unit.

Included items & article numbers (summary)
VITA Silver Test Set — To test the temperature inside ceramic furnaces; contains 6 ceramic sockets and 3 silver rods (70 mm × 1.5 mm Ø) — Prod. no.: B230
VITA V60 i-Line® PLUS (230 V) — Standard scope (DV60IP220): 1 firing base; 1 power supply cable; 1 connection cable for vacuum pump; 1 vacuum tube; 2 side firing object trays; 1 operating manual — Prod. no.: DV60IP220
VITA V60 i-Line® TOOLBOX — Metal box with accessories (Whiteboard foil, foil pencil, furnace tweezer 25 cm, packs of firing bases and trays) — Prod. no.: DTOOL

Technical data (summary)
Width: 260 mm
Depth: 420 mm
Height: 570 mm
Weight: 18 kg
Housing: Sheet steel, powder coated
Firing chamber diameter: 90 mm
Firing chamber height: 55 mm
Maximum firing temperature: 1200 °C
Power supply: 100/110 V 50/60 Hz; 230 V 50/60 Hz
Maximum energy usage: 1.5 kW
Display: 7 inch touch display
Classification: Safety Class 1

Technical functions & accessories

• Automatic temperature calibration and platinum/rhodium–platinum temperature sensor.
• High-temperature insulation and quartz firing muffle for stable cycles.
• Side trays for temporary placement of firing objects.
• Optional accessories: vacuum pump (various voltages), VITA V60 i-Line TOOLBOX (DTOOL), Wifi Dongle V60 i-Line PLUS, VITA Silver Test Set (B230).
