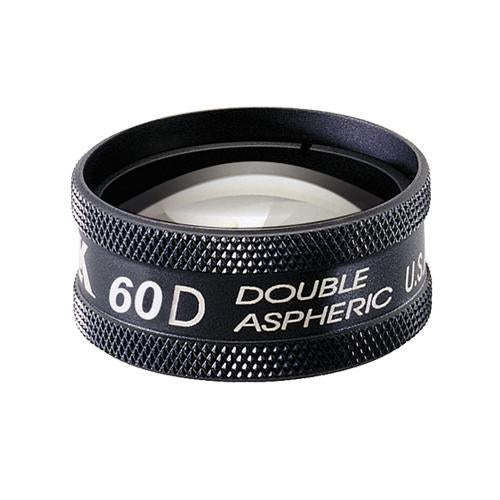

Diagnostic ophthalmic lens 60D

for slit lampswith wide field-of-viewnon-contact

Product Overview
The 60D fundus lens delivers sharper, more detailed central retinal images through a double aspheric design, optimized for high-magnification examination of the posterior pole. It facilitates detection of subtle macular defects, capillary hemorrhages and supports accurate assessment of cup-to-disc ratios. Pupil dilation is recommended for optimal imaging. The optical design requires a longer working distance of 13 mm from the patient.

Key Features

• High magnification view of the posterior pole
• Double aspheric optics for improved central retinal detail
• Enables detection and assessment of retinal abnormalities such as age-related macular degeneration and capillary hemorrhages
• Pupil dilation recommended for optimal image quality
• Long working distance (13 mm) due to optical profile

Usage Notes
Intended for slit-lamp, non-contact fundus examination. The lens balances magnification and field-of-view for detailed imaging of the optic disc and macula. Use standard slit-lamp techniques and pharmacological dilation when required.

Technical Specifications

• Field of view: 68° / 81°
• Image magnification: 1.15×
• Laser spot magnification: 0.87×
• Working distance: 13 mm
• Designed to provide high magnification for detailed optic disc and macula imaging to detect small defects and subtle changes
• Diameter suitable for orbital use
• Part Number: V60C
