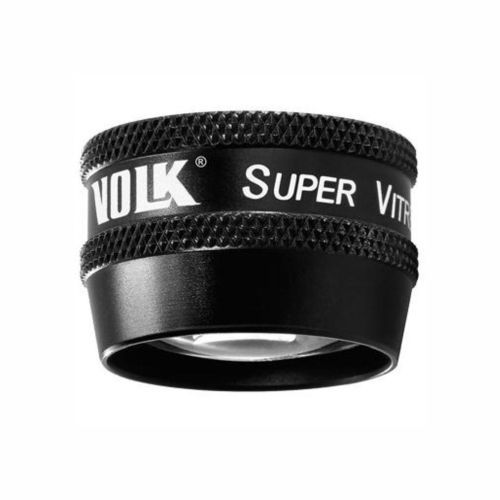

Diagnostic ophthalmic lens Super VitreoFundus®

for binocular indirect ophthalmoscopywith wide field-of-view

Product Description The Super VitreoFundus® VSVF is a retinal examination lens that delivers an ultra wide field of view beyond the vortex, enabling fast assessment of the peripheral retina for tears and detachments. Designed for small‑pupil use, it permits quick, undilated retinal screening through pupils of 3–4 mm and larger. The lens’ closer working distance of 4–5 mm fills the lens ring to maximize the usable field.

Features

• Optimized for ultra wide field, small‑pupil pan‑retinal examination
• Enables rapid undilated screening through pupils ≥ 3–4 mm
• Short working distance (4–5 mm) to utilize the full lens field

Part Number VSVF

Technical specifications

• Field of view: 103° / 124°
• Image magnification: 0.57x
• Laser spot magnification: 1.75x
• Working distance: 4–5 mm
• Shorter working distance enables the lens’ full wide field capability
• Well suited for quick undilated screening exams
