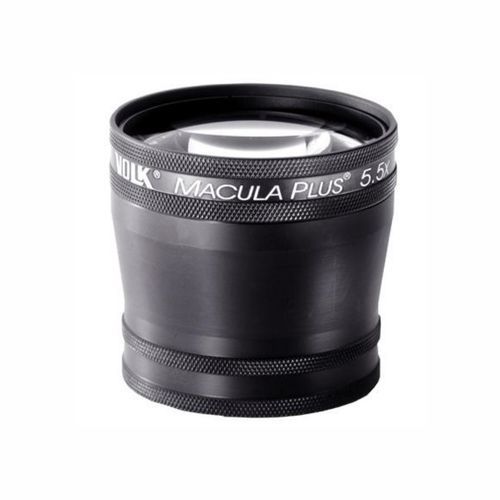

Diagnostic ophthalmic lens Macula Plus® 5.5

for binocular indirect ophthalmoscopywith wide field-of-viewhigh-magnification

Product Description
The Macula Plus® 5.5 Lens delivers the highest magnification in the BIO lens range, optimized for detailed examination of the optic disc and macula. Its double-aspheric optical design provides improved stereopsis for detecting subtle retinal and macular abnormalities, including signs of age-related macular degeneration. The optical profile requires a longer 80 mm working distance; an adapter is provided to aid handling and stabilization.

Highlights

• 36° / 43° field of view
• 5.50x image magnification
• 0.18x laser spot magnification
• 80 mm working distance
• Double aspheric design for enhanced stereopsis
• Adapter included for handling and stabilization
• Single-lens case included
• Free engraving available

Part Number
VMP5.5

Technical specifications

• Field of view: 36° / 43°
• Image magnification: 5.50x
• Laser spot magnification: 0.18x
• Working distance: 80 mm
• Optical design: double aspheric
• Provides high-magnification stereo imaging for diagnosis of macular abnormalities
• Facilitates examination of geriatric patients due to high magnification
