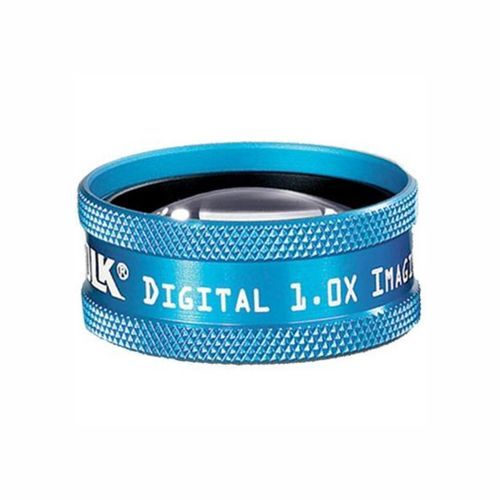

Diagnostic ophthalmic lens Digital Series

for slit lampswith wide field-of-viewhigh-resolution

Product description
The Digital Series 1.0x imaging lens provides high-magnification, high-resolution visualization of the posterior pole during slit lamp examination. It delivers enhanced stereopsis and low-reflection optics for distortion-free views and supports precise retinal measurements (e.g., cup-to-disc ratio) without conversion. Optimised for clinical slit lamp imaging workflows.

Key features

• Optimised for digital slit lamp photography and imaging
• Enhanced stereopsis for distortion-free views with minimal reflections
• 1.0x magnification enables direct retinal measurements (cup-to-disc ratio) without conversion

Resources

• Cleaning and care guide (PDF available in product resources)

Technical specifications

• Field of view: 60° / 72°
• Image magnification: 1.0x
• Laser spot magnification: 1.0x
• Working distance: 12 mm
• Unique glass surface curvature and coating minimize distortion and reflections
• 1.0x magnification simplifies optic disc ratio measurements
• Part Number: VDGTL1
• SKU: VDGTL1
• EAN / Barcode: 811608012063
