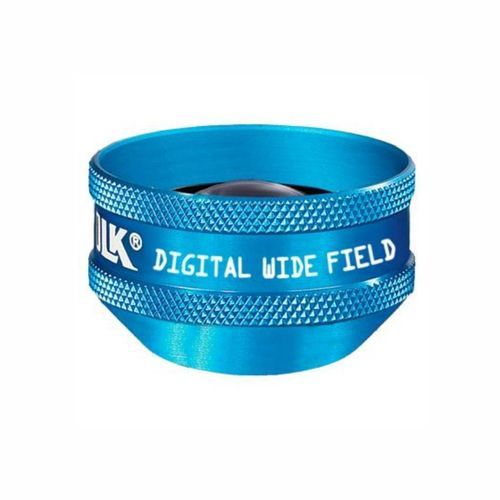

Diagnostic ophthalmic lens Digital Series Wide Field®

for slit lampslaserfor retinal laser

Product description
The third‑generation Digital Wide Field® 90D slit‑lamp lens VDGTLWF provides the largest field of view available in slit‑lamp diagnostic lenses. Designed for retinal examination through small pupils, it delivers an expanded retinal coverage (including the ora serrata) without pharmacologic dilation and maintains clinical magnification appropriate for detailed stereo assessment.

Key benefits

• Expanded field of view: up to 103° / 124°, offering broader peripheral retinal visualization
• Optimized for small‑pupil, high‑resolution pan‑retinal examination
• Maintains clinical stereopsis with 0.72x image magnification and 1.39x laser spot magnification
• High‑index glass with advanced optical coatings for bright, low‑distortion images

Technical specifications

• Field of view: 103° / 124°
• Image magnification: 0.72x
• Laser spot magnification: 1.39x
• Working distance: 4–5 mm
• Optical design: enhanced double aspheric design combined with high‑index glass for high‑resolution stereo imaging through small pupils
• Shorter working distance to exploit full wide‑field capability
• Available colors: Black, Blue, Gold, Green, Purple, Red, Silver, Champagne Gold, Multicolor, Pink
• Part Number: VDGTLWF
• Includes: single‑lens case (see product page) and optional free engraving
