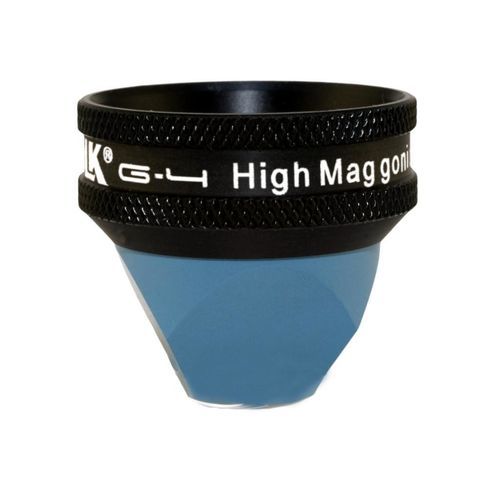

Diagnostic ophthalmic lens G-4 High Mag Gonio

laserfor gonioscopyhigh-magnification

Product Description
The G-4 High Mag Gonio Lens is a four-mirror, all-glass gonioscopy lens designed for enhanced magnified viewing of the anterior chamber angle. Compared with the classic G-4 Gonio, it provides 1.50x image magnification to improve visualization of the trabecular meshwork. The Posner-style handle option supports dynamic and indentation gonioscopy; the flanged version is compatible with laser trabeculoplasty. Available ring sizes and flange options allow customization for different clinical workflows.

Highlights

• Optimized for magnified anterior chamber angle assessment
• Four-mirror all-glass optical design
• Posner-style handle option (two-position right/left handle available)
• Available in flanged and no-flange configurations
• Large (28.5 mm) and small (25.5 mm) ring sizes
• Single-lens protective case included
• Free engraving option available

Part Numbers

• VG4HM (Flange, Large Ring)
• VG4HMLNF (No Flange, Large Ring)
• VG4HMSNF (No Flange, Small Ring)
• VG4HMHAN2 (No Flange, 2-in-1 Handle - Posner style)

Technical specifications

• 4 x 64° mirror angles
• 1.50x image magnification
• 0.67x laser spot size
• Contact diameter: 15 mm (flange) / 8.4 mm (no flange)
• No Flange / No Fluid version suited for dynamic and indentation/compression gonioscopy
• Small ring option adapted for petite hands
• Posner-style handle provides ergonomic support and enables two-position use
