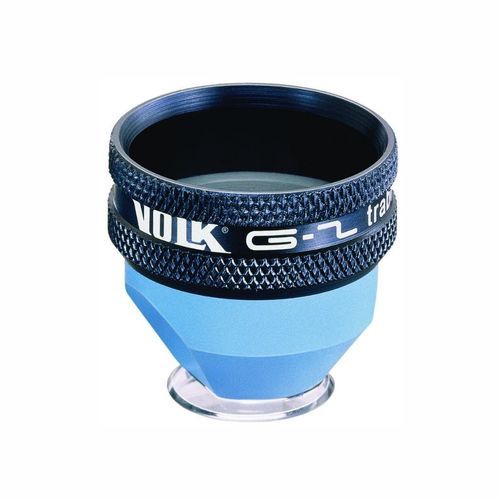

Laser ophthalmic lens G-2 Goniofor gonioscopywith wide field-of-viewhigh-magnification
Add to favorites
Compare this product
Characteristics
- Applications
- for gonioscopy, laser
- Technology
- high-magnification, with wide field-of-view
Description
Product Overview
An all-glass design and dual mirror angles make the G-2 Gonio Lens ideal for viewing the anterior chamber with both detailed and wide perspectives. Available in flanged format for laser trabeculoplasty and no-flange format for routine gonioscopy, the lens delivers optical clarity and clinical versatility.
Key Features
Formats
Flanged for laser trabeculoplasty; No Flange for routine gonioscopy.
Part Number
VG2 (Trabeculum Flange) and VG2NF (Trabeculum No Flange).
Resources
Cleaning and Care Guide (PDF available).
Technical specifications
An all-glass design and dual mirror angles make the G-2 Gonio Lens ideal for viewing the anterior chamber with both detailed and wide perspectives. Available in flanged format for laser trabeculoplasty and no-flange format for routine gonioscopy, the lens delivers optical clarity and clinical versatility.
Key Features
- 60° / 64° mirror angles
- 1.50x image magnification
- 0.67x laser spot size
- 15 mm (flange) / 8.4 mm (no flange) contact diameter
- High magnification combined with dual mirror angles (60°/64°) for both detailed and broad views of the anterior chamber
- All-glass construction for optical clarity and durability
Formats
Flanged for laser trabeculoplasty; No Flange for routine gonioscopy.
Part Number
VG2 (Trabeculum Flange) and VG2NF (Trabeculum No Flange).
Resources
Cleaning and Care Guide (PDF available).
Technical specifications
- Mirror angles: 60° / 64°
- Image magnification: 1.50x
- Laser spot size: 0.67x
- Contact diameter: 15 mm (flange) / 8.4 mm (no flange)
- All-glass construction for optical clarity and durability
- Available part numbers: VG2 (Flange), VG2NF (No Flange)
- Available contact options: Flange, No Flange
