Diagnostic ophthalmic lens Mini 4-Mirror Lensfor gonioscopypediatric
Add to favorites
Compare this product
Characteristics
- Applications
- diagnostic, for gonioscopy
- Application domain
- pediatric
Description
Overview

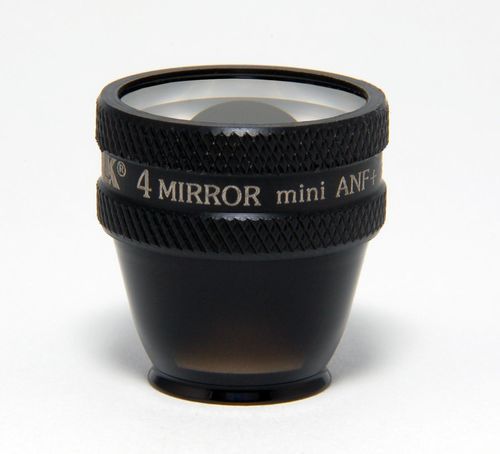

The V4MANF+ Mini 4-mirror gonioscopy lens is a compact acrylic lens featuring an advanced no-fluid (ANF+) flange that eliminates the need for coupling fluid. It is designed for anterior chamber angle visualization in small anatomies and pediatric examinations, providing 1.0x magnification and a 15 mm contact diameter for accurate assessment.
Features
Resources
Manufacturer cleaning and care guide available.
Technical specifications
The V4MANF+ Mini 4-mirror gonioscopy lens is a compact acrylic lens featuring an advanced no-fluid (ANF+) flange that eliminates the need for coupling fluid. It is designed for anterior chamber angle visualization in small anatomies and pediatric examinations, providing 1.0x magnification and a 15 mm contact diameter for accurate assessment.
Features
- 4 x 62° mirror angles
- 1.0x image magnification
- 1.0x laser spot size
- 15 mm contact diameter
- Suitable for small anatomies, narrow palpebral fissures and pediatric exams
Resources
Manufacturer cleaning and care guide available.
Technical specifications
- Mirror angles: 4 x 62°
- Image magnification: 1.0x
- Laser spot size: 1.0x
- Contact diameter: 15 mm
- Part Number: V4MANF+
- Design: Acrylic, ANF+ (no coupling fluid required)
- Recommended use: Anterior chamber angle viewing; suitable for small anatomies and pediatric exams
