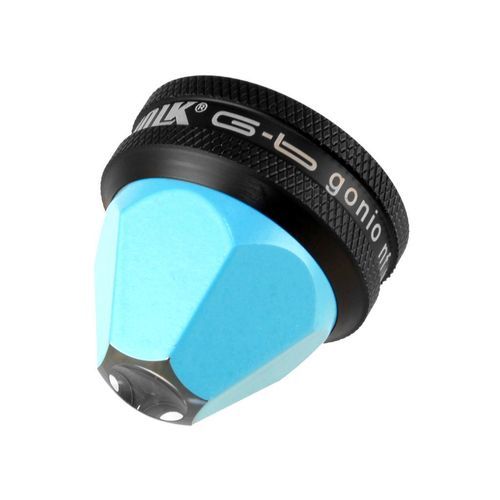

Laser ophthalmic lens G-6 Gonio

for gonioscopywith wide field-of-view

Product description
The G-6 gonio lens features a six-mirror, all-glass optical design that delivers a panoramic 360° view of the anterior chamber for efficient, reproducible gonioscopy. Its 28.5 mm large ring and 4 mm contact diameter provide a wide field of view while the two-position handle supports both right- and left-handed examination technique. The lens maintains 1.0x image magnification and 1.0x laser spot size for laser procedures.

Key Features

• 6 × 63° mirror angles for full circumferential visualization
• Image magnification: 1.0x
• Laser spot size: 1.0x (compatible with laser treatment)
• Contact diameter: 4 mm
• Large 28.5 mm ring for extended view
• Two-position handle (right/left handed)

Included / Options

• Single-lens case included
• Free engraving (note: case engraving unavailable if 2-in-1 handle option is selected)

Technical specifications

• Mirror angles: 6 × 63°
• Image magnification: 1.0x
• Laser spot size: 1.0x
• Contact diameter: 4 mm
• Ring diameter: 28.5 mm
• Available part numbers: VG6LNF (Large, No Flange); VG6HAN2 (2-in-1 Handle)
• Handle: two-position, right/left handed
• Note: when selecting the 2-in-1 handle option, case engraving is not available
