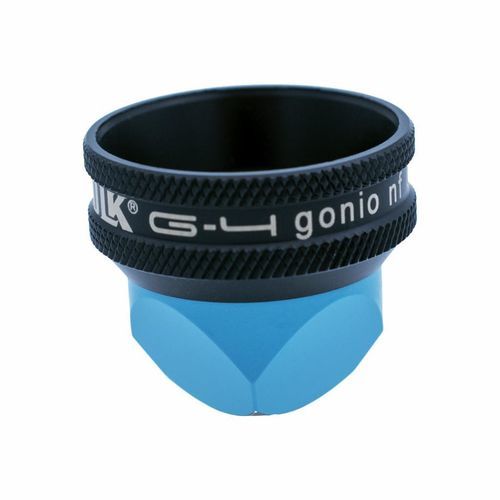

Gonioscopy ophthalmic lens G-4 Mirror Gonio

with wide field-of-viewhigh-resolution

Product Description
The G-4 Mirror gonio lens provides a comprehensive view of the trabecular meshwork with minimal lens rotation thanks to its four‑mirror, all‑glass Sussman‑style design. It delivers high‑resolution optics for detailed examination of anterior chamber angle structures. Variants include large (28.5 mm) or small ring (25.5 mm), flanged or no‑flange versions, and a 2‑position Posner‑style handle for right/left handed use. The no‑flange/no‑fluid option is suitable for dynamic and indentation gonioscopy, while the flanged version enhances stability during procedures such as trabeculoplasty.

Features

• Four 64° mirror angles for broad angle visualization
• 1.0x image magnification
• 1.0x laser spot size
• Contact diameter: 15 mm (flange) / 8.4 mm (no flange)
• No‑Flange / No‑Fluid version ideal for dynamic and indentation/compression gonioscopy
• Designed for quick exams with maximum patient comfort
• Flanged version available for improved stability during procedures (e.g., trabeculoplasty)

Part Numbers

• VG4 — Flange, Large Ring
• VG4LNF — No Flange, Large Ring
• VG4SNF — No Flange, Small Ring
• VG4HAN2 — No Flange, 2-in-1 Handle (Posner style)

Resources

• Cleaning and Care Guide (PDF available from the product documentation)

Specifications

• 4 × 64° mirror angles
• Image magnification: 1.0x
• Laser spot size: 1.0x
• Contact diameter: 15 mm (flange) / 8.4 mm (no flange)
• Available variants: Flange / No Flange; Sizes: Large, Small, 2‑in‑1 Handle
• Designed for rapid, comfortable gonioscopic examinations
• Not recommended for SLT — Volk Rapid SLT or a dedicated SLT lens is recommended for selective laser trabeculoplasty procedures
