LIMB SALVAGE SYSTEM
Designed with a focus on strength, versatility, and low-profile anatomic contours.
Enhanced, contoured plate profile designed for additional stability Two different medial column plate styles to provide more options when matching patient anatomy
All plate holes accept 4.0mm and 5.5mm locking and non-locking screws Osteopenic thread profile is designed to enhance screw purchase in poor quality bone Proximal taper on screw core diameter for increased strength SALVATION™ 3Di polyaxial locking capability Compression features in all plates

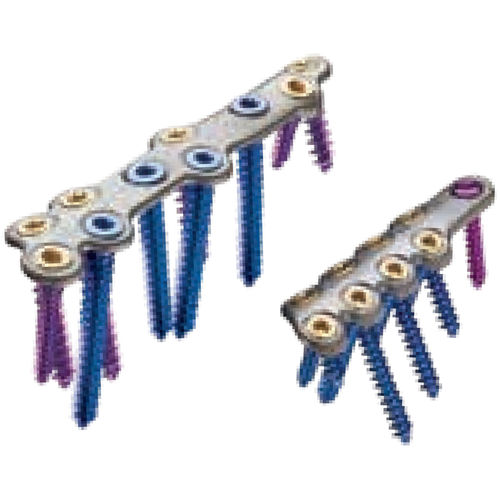

Type II anodized SALVATION™ 3Di Plates feature two different designs, each of which are contoured specifically for the medial column and engineered to provide enhanced strength.
4.0mm and 5.5mm locking and non-locking (low-profile) screws Osteopenic thread profile for enhanced fixation in poor quality bone Choose the most appropriate screw diameter and type based on anatomy and bone quality
Proven 3Di locking technology allows for screws to be placed up to 15 degrees off-axis
Screws feature an osteopenic thread profile to enhance purchase in poor quality bone
Medial column plate styles provide options that match patient anatomy
The market’s ONLY comprehensive solution for Charcot arthropathy and
advanced midfoot reconstruction.
Increased Material Fatigue Strength
2 Midfoot Nail, Plates, Beams, and Bolts all
feature Type II Anodized Titanium Alloy per ASTM per
F136, which has been shown to have a higher fatigue
than color anodized and stainless steel.
Fatigue Strength at 10 Million Cycles (%)
Material Fatigue Strength*
