- Tibia external fixation system
- Wuxi Betta Medical Technology

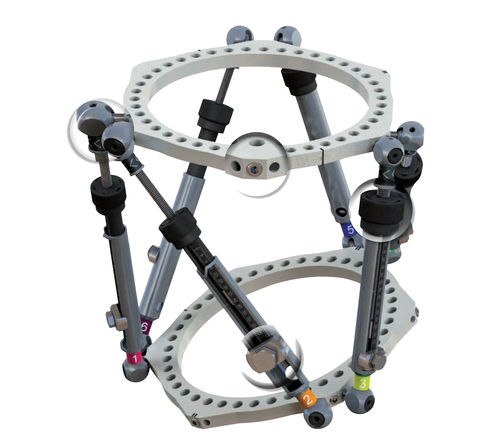

Tibia external fixation system femuranklecircular
Add to favorites
Compare this product
Characteristics
- Joint / bone
- tibia, femur, ankle
- Type
- circular
- Patient type
- adult, pediatric
Description
TL-HEX rings can be applied in any desired positionusing complete or 5/8 rings. lf two 5/8 rings are usedthe openings should be in line, allowing the surgeons tomaintain traction on the patient's limb. The basic principlesof aligning a ring on the limb perpendicular to its longaxis should be followed. Either wires or half pins (or acombination of both) can be used to secure the ring tothe limb depending on surgeon preferences and spaceavailability.
Assembly element:
1.Bolts
2.Nuts
3.Washer
4.M6×1 Hex, Speednut
5.Extended Nut
6.Wires
7.Universal Wire Fixation Blot
8.8mm Half Pin Fixation Bolt
9.Posts
10.Quick Adjust Struts
